Boat pump UP1-TB/HD
marineballastfor water

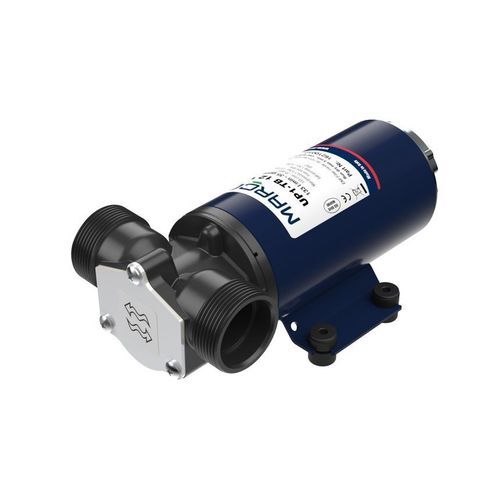

Boat pump - UP1-TB/HD - Marco - marine / ballast / for water
Boat pump - UP1-TB/HD - Marco - marine / ballast / for water
Boat pump - UP1-TB/HD - Marco - marine / ballast / for water - image - 2
Add to favorites
Compare this product
Go to the Marco website for more information

Characteristics

Application domain
for boat, marine
Applications
ballast
Fluid
for water
Technology
impeller
Operation
electric, motor-driven, electrically-operated
Voltage
12 V, 24 V
Protection level
IP67
Material
EPDM, polymer
Other characteristics
self-priming, reversible
Flow rate

120 l/min
(31.7 us gal/min)

Power consumption

Min.: 10 A

Max.: 20 A

Pressure

1.5 bar
(21.8 psi)

Hose diameter

Min.: 25 mm
(1 in)

Max.: 38 mm
(1 in)

Weight

3.6 kg
(7.9 lb)

Height

98 mm
(4 in)

Length

227 mm
(9 in)

Width

120 mm
(5 in)

Description

Product description
Self-priming electric pump for water with a maximum flow of 120 l/min, engineered for efficient, reliable continuous operation during ballast filling and draining on recreational and professional vessels. The self-lubricating technopolymer pump body combined with a flexible EPDM impeller provides low friction, consistent performance and long service life, reducing power consumption. This UP1-TB/HD version is optimized for reduced current draw and continuous heavy-duty use. The reversible design ensures identical flow rates and constant current during motor reversal, contributing to electrical stability. Manufactured to ISO 8846 and ISO 8849 standards for marine applications.

Technical details (table)
Part n. | Product Name | Retail price (€ ea.) | Voltage (V) | Max current (A) | Fuse (A) | Max flow (l/min) | Priming (m) | Max pressure (bar) | O-Ring | Seal | Hz | Ports (BSPP) | Hose (mm) | IP | Motor power (W) | Weight (kg)
16210112 | UP1-TB/HD | Login | 12 | 20 | 30 | 120 | 1.5 | 1.5 | NBR | HNBR | DC | 1"1/2 | 25 ~ 38 | 67 | 250 | 3.6
16210113 | UP1-TB/HD | Login | 24 | 10 | 20 | 120 | 1.5 | 1.5 | NBR | HNBR | DC | 1"1/2 | 25 ~ 38 | 67 | 250 | 3.6

Drawing
Technical drawing available: up1-tb-hd_d0.jpg

Features / technical specifications
  • Model: UP1-TB/HD
  • Part numbers: 16210112 (12 V) and 16210113 (24 V)
  • Type: Self-priming flexible-impeller pump (Turbo Ballast)
  • Max flow: 120 l/min
  • Voltage options: 12 V and 24 V
  • Max current draw: 20 A (12 V); 10 A (24 V)
  • Recommended fuse: 30 A (12 V); 20 A (24 V)
  • Max suction lift (priming): 1.5 m
  • Max working pressure: 1.5 bar
  • O-Ring material: NBR; Seal material: HNBR
  • Connections: 1"1/2 BSPP
  • Compatible hose diameter: 25–38 mm
  • Protection rating: IP67
  • Motor power: 250 W
  • Weight: 3.6 kg
  • Pump body: self-lubricating technopolymer
  • Impeller: flexible EPDM
  • Reversible operation: identical flow and constant current during motor reversal
  • Optimized for reduced current draw and continuous/heavy-duty operation
  • Standards: ISO 8846, ISO 8849 (suitable for marine use)
