Boat pump UP14/E-BR
transferrefuelingfor liquids

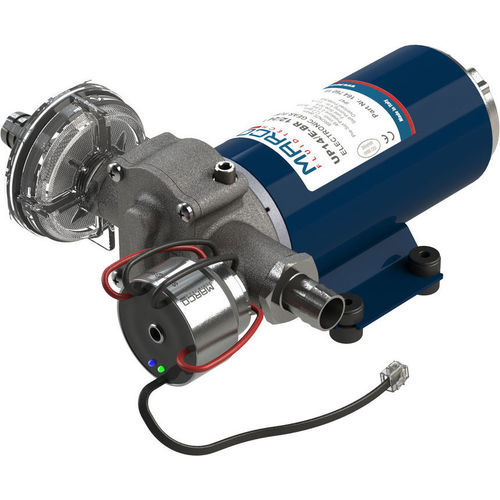

Boat pump - UP14/E-BR - Marco - transfer / refueling / for liquids
Boat pump - UP14/E-BR - Marco - transfer / refueling / for liquids
Boat pump - UP14/E-BR - Marco - transfer / refueling / for liquids - image - 2
Add to favorites
Compare this product
Go to the Marco website for more information

Characteristics

Application domain
for boat
Applications
transfer, refueling
Fluid
oil, for liquids, for viscous liquids, for fuel
Technology
gear, helical gear
Operation
electric, electronic
Voltage
12 V, 24 V
Fuse size
30 A
Protection level
IP67
Material
stainless steel, bronze, brass
Other characteristics
self-priming
Power consumption

Max.: 16 A

Min.: 8 A

Pressure

Max.: 2.5 bar
(36.3 psi)

Min.: 0 bar
(0 psi)

Hose diameter

Max.: 19 mm
(1 in)

Min.: 19 mm
(1 in)

Weight

Max.: 5.2 kg
(11.5 lb)

Min.: 5.2 kg
(11.5 lb)

Height

119 mm
(5 in)

Length

263 mm
(10 in)

Width

225 mm
(9 in)

Description

Self-priming electric gear pump (12/24 V) with electronic pressure sensor and integrated SCS control panel, designed for transfer of diesel and oils. Bronze helical gears, nickeled brass body and connections, stainless steel shaft, FKM mechanical seal and NBR O-rings. Electronic control provides selectable High-Speed and Low-Speed modes for different fluids.

Key features
  • Self-priming, 12/24 V DC operation with electronic pressure control and integrated SCS panel.
  • Bronze helical gears for constant pressure, long duty cycles, reduced noise and short dry-run capability.
  • NBR check valve; nickeled brass body and connections; stainless-steel shaft; FKM mechanical seal; NBR O-rings.
  • Integrated SCS control panel with factory default "High-Speed" for diesel transfer and selectable "Low-Speed" for oils and viscous liquids.


Documents
  • Product booklet and technical datasheet (PDF) available for model UP14/E-BR.


Technical specifications
  • Part n.: 16476015
  • Model: UP14/E-BR
  • Voltage: 12/24 V
  • Absorption: 16 A (12 V) / 8 A (24 V)
  • Fuse: 30 A
  • Flow rate: 46 l/min
  • Priming: 4 m
  • Max pressure: 2.5 bar
  • O-ring: NBR
  • Seal: FKM
  • Supply: DC
  • Ports (BSPP): 3/4"
  • Recommended hose: 19 mm
  • Protection: IP67
  • Motor power: 400 W
  • Weight: 5.2 kg
