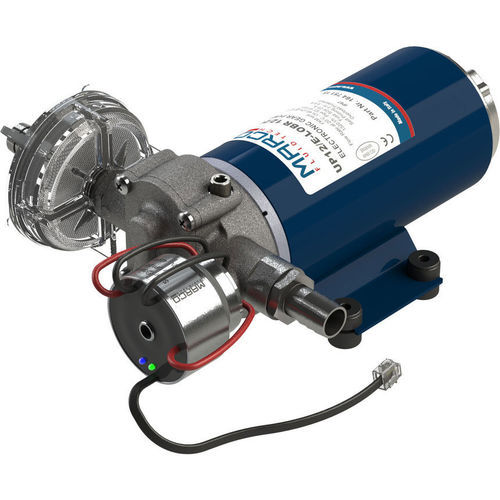

Boat pump UP12/E-LOBR
transfersuctionfor viscous liquids

Boat pump - UP12/E-LOBR - Marco - transfer / suction / for viscous liquids
Boat pump - UP12/E-LOBR - Marco - transfer / suction / for viscous liquids
Boat pump - UP12/E-LOBR - Marco - transfer / suction / for viscous liquids - image - 2
Boat pump - UP12/E-LOBR - Marco - transfer / suction / for viscous liquids - image - 3
Add to favorites
Compare this product
Go to the Marco website for more information

Characteristics

Application domain
for boat
Applications
transfer, suction
Fluid
oil, for viscous liquids, for fuel
Technology
helical gear
Operation
electric, motor-driven
Voltage
12 V, 24 V
Fuse size
25 A
Protection level
IP67
Material
stainless steel, bronze, brass
Other characteristics
self-priming, automatic
Flow rate

Max.: 1.56 m³/h
(55.09 ft³/h)

Min.: 1.56 m³/h
(55.09 ft³/h)

Power consumption

Max.: 8 A

Min.: 4 A

Pressure

Max.: 3 bar
(43.5 psi)

Min.: 0 bar
(0 psi)

Hose diameter

Max.: 16 mm
(1 in)

Min.: 16 mm
(1 in)

Weight

Max.: 4.6 kg
(10.1 lb)

Min.: 4.6 kg
(10.1 lb)

Height

113 mm
(4 in)

Length

258 mm
(10 in)

Width

221 mm
(9 in)

Description

Self-priming automatic electric pump 12/24 V for transfer of diesel and oil. Equipped with helical bronze gears and an integrated SCS control panel that allows selection between High-Speed for diesel and Low-Speed for oil and viscous liquids. Constant-pressure electronic control and dry-run capability make it suitable for prolonged service cycles.

Key features
  • Helical bronze gears deliver constant pressure, support heavy-duty cycles, reduce noise and permit operation in absence of liquid (dry-running capability).
  • Integrated SCS control panel with selectable High-Speed (for diesel) and Low-Speed (for oil and viscous liquids).
  • Self-priming automatic operation with constant-pressure electronic control; compatible with 12/24 V DC systems.


Technical specifications
  • Part number: 16475115
  • Model: UP12/E-LOBR
  • Voltage: 12/24 V
  • Current draw: 8 A (12 V) / 4 A (24 V)
  • Fuse: 25 A
  • Flow rate: 26 l/min
  • Priming (suction) height: 3 m
  • Maximum pressure: 3 bar
  • O-Ring material: NBR
  • Seal material: FKM
  • Electrical supply type: DC
  • Ports (BSPP): 1/2"
  • Recommended hose diameter: 16 mm
  • Protection: IP67
  • Motor power: 360 W
  • Weight: 4.6 kg
  • Body and connections: nickelled brass
  • Shaft: stainless steel
  • Check valve: NBR
