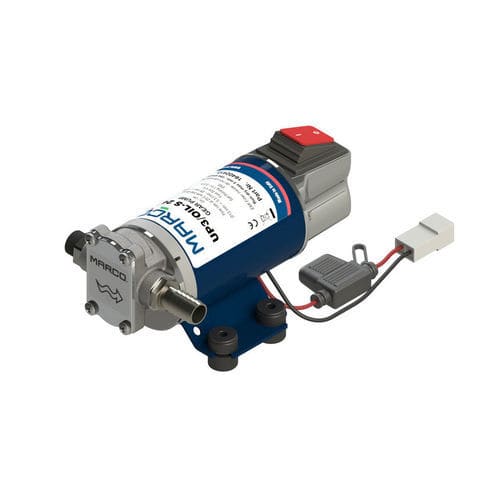

Boat pump UP3/OIL-Smachinetransferrefueling
Add to favorites
Compare this product
Characteristics
- Application domain
- for boat, machine
- Applications
- transfer, refueling
- Fluid
- water, oil, for fuel
- Technology
- gear
- Operation
- electric
- Voltage
- 12 V, 24 V, 110 V, 220-240 V
- Protection level
- IP55, IP65
- Material
- stainless steel, brass
- Other characteristics
- self-priming
- Flow rate
Min.: 0.33 m³/h
(11.65 ft³/h)Max.: 1.8 m³/h
(63.57 ft³/h)- Power consumption
Min.: 3 A
Max.: 7.5 A
- Pressure
Min.: 2 bar
(29 psi)Max.: 5 bar
(72.5 psi)- Hose diameter
Min.: 13 mm
(1 in)Max.: 16 mm
(1 in)- Weight
Min.: 1.8 kg
(4 lb)Max.: 7.6 kg
(16.8 lb)- Height
89 mm
(4 in)- Length
1,811 mm
(71 in)- Width
108 mm
(4 in)
Description
Overview
Available variants
Characteristics / Technical specifications
Applications
Documentation & pricing
- Self-priming electric pumps for transfer of diesel, oils and water. Two families: UP3/OIL-S (12 V and 24 V) with integrated ON/OFF switch; UP6/AC (110/230 V) with PEEK gears for higher flow.
Available variants
- 16402412 — UP3/OIL-S (12 V)
- Voltage: 12 V
- Current: 5 A
- Fuse: 7.5 A
- Priming (self-priming): 1 m
- Flow rate: 5.5 l/min
- Pressure: 2 bar
- Ports: 3/8" BSPP
- Recommended hose: 13 mm
- Seal: FKM
- O-ring: NBR
- Motor power: 90 W
- Protection: IP65
- Weight: 1.8 kg
- 16402413 — UP3/OIL-S (24 V)
- Voltage: 24 V
- Current: 3 A
- Fuse: 4 A
- Priming (self-priming): 1 m
- Flow rate: 5.5 l/min
- Pressure: 2 bar
- Ports: 3/8" BSPP
- Recommended hose: 13 mm
- Seal: FKM
- O-ring: NBR
- Motor power: 90 W
- Protection: IP65
- Weight: 1.8 kg
- 1640611B — UP6/AC (110 V)
- Voltage: 110 V
- Current: 7.5 A
- Fuse: 10 A
- Flow rate: 30 l/min
- Priming (self-priming): 1.5 m
- Pressure: 5 bar
- Ports: 1/2" BSPP
- Tube: 16 mm
- Motor power: 550 W
- Protection: IP55
- Weight: 7.6 kg
- 1640611C — UP6/AC (230 V)
- Voltage: 230 V
- Current: 3.2 A
- Fuse: 5 A
- Flow rate: 30 l/min
- Priming (self-priming): 1.5 m
- Pressure: 5 bar
- Ports: 1/2" BSPP
- Tube: 16 mm
- Motor power: 550 W
- Protection: IP55
- Weight: 7.6 kg
Characteristics / Technical specifications
- Materials (UP6): gears in PEEK; body and connections in nickel-plated brass; shaft in stainless steel.
- Seals: mechanical seal in FKM; O-ring in NBR.
- Self-priming capability: UP3 up to 1 m, UP6 up to 1.5 m.
- Flow range: UP3 ~5.5 l/min; UP6 ~30 l/min.
- Max pressure: UP3 2 bar; UP6 5 bar.
- Connections: UP3 3/8" BSPP (hose 13 mm); UP6 1/2" BSPP (tube 16 mm).
- Protection: UP3 IP65; UP6 IP55.
- Supply types: DC for UP3 (12/24 V); AC for UP6 (110/230 V, 50/60 Hz).
Applications
- Transfer and refuelling of diesel, oils and water for marine, automotive and industrial uses.
Documentation & pricing
- Retail price: not displayed (login required).
- Technical documents: product datasheets and booklets available on request.
