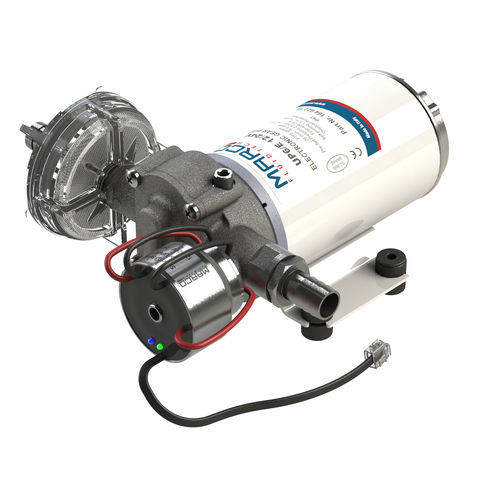

Boat pump UP6/E

for yachtwater pressure systemshower

Description
Self-priming automatic electric pump with helical PEEK gears, integrated check valve and electronic control. Nickel-plated brass body and stainless steel shaft. Manufacturer: Marco s.p.a. Available also with a control panel.

Technical specifications

• Model: UP6/E
• Max flow: 27 l/min
• Self-priming: 1.5 m
• Max pressure: 2.5 bar
• Voltage options: 24 V; 12/24 V (depending on variant)
• Max current: 8 A (24 V variant); 15 A (12 V) / 8 A (24 V) for 12/24 V variant
• Recommended fuse: 10 A (24 V); 20 A (12/24 V)
• O-Ring: NBR; Seal: HNBR
• Ports: 1/2" BSPP
• Recommended hose: 16 mm
• Ingress protection: IP67
• Motor power: 180 W
• Weight: 3.7 kg

Variants

• Part no 16462213 — 24 V; Max current 8 A; Fuse 10 A; Flow max 27 l/min; Priming 1.5 m; Max pressure 2.5 bar; O-Ring NBR; Seal HNBR; DC; Ports 1/2" BSPP; Hose 16 mm; IP67; Motor 180 W; Weight 3.7 kg
• Part no 16462215 — 12/24 V; Max current 15 A (12 V) / 8 A (24 V); Fuse 20 A; Flow max 27 l/min; Priming 1.5 m; Max pressure 2.5 bar; O-Ring NBR; Seal HNBR; DC; Ports 1/2" BSPP; Hose 16 mm; IP67; Motor 180 W; Weight 3.7 kg

Applications

• Fresh water pressure systems on boats and yachts
• Shower kits for sailboats and motorboats
• Inflatable and rigid dinghies
• Camper and motorhome water systems

Documents & accessories

• Booklets and technical files: UP6-E_00_ENG.pdf, UP6-E_01_ENG.pdf, UP6-E_10_ENG.pdf
• Optional accessories: electronic control panel (PCS / SCS), expansion vessels (AT1, AT2, ATX2), RJ11 extension cable
