Boat pump UP3/OIL-S
transferrefuelinglubrication

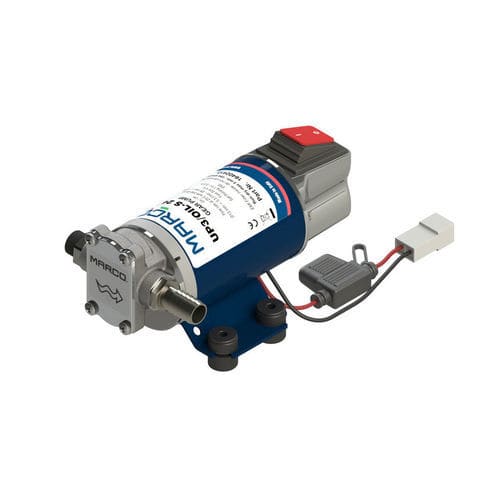

Boat pump - UP3/OIL-S - Marco - transfer / refueling / lubrication
Boat pump - UP3/OIL-S - Marco - transfer / refueling / lubrication
Boat pump - UP3/OIL-S - Marco - transfer / refueling / lubrication - image - 2
Add to favorites
Compare this product
Go to the Marco website for more information

Characteristics

Application domain
for boat
Applications
transfer, lubrication, refueling
Fluid
water, oil, for fuel
Operation
electric
Voltage
12 V, 24 V
Fuse size
7.5 A
Protection level
IP65
Other characteristics
self-priming
Flow rate

Min.: 0.02 m³/h
(0.71 ft³/h)

Max.: 0.33 m³/h
(11.65 ft³/h)

Power consumption

Min.: 3 A

Max.: 5 A

Pressure

Min.: 0 bar
(0 psi)

Max.: 2 bar
(29 psi)

Hose diameter

Min.: 6 mm
(0 in)

Max.: 13 mm
(1 in)

Weight

Min.: 1.8 kg
(4 lb)

Max.: 1.8 kg
(4 lb)

Height

89 mm
(4 in)

Length

181 mm
(7 in)

Width

108 mm
(4 in)

Description

Professional range of self-priming 12V and 24V electric pumps for transfer and refueling of diesel, lubricating oils and water. ON/OFF switch integrated into the waterproof motor cap. The -R versions are fitted with a 3-position switch to reverse flow direction.

Versions / Models
  • Part n. 16402412 — Model: UP3/OIL-S; Voltage: 12 V; Current draw: 5 A; Fuse: 7.5 A.
  • Part n. 16402413 — Model: UP3/OIL-S; Voltage: 24 V; Current draw: 3 A; Fuse: 4 A.


Characteristics / Technical specifications
  • Type: self-priming electric pump — priming height: 1 m
  • Nominal flow: 5.5 l/min; Maximum pressure: 2 bar
  • Flow by hose diameter: ø6 = 0.3 l/min; ø8 = 1 l/min; ø13 = 5.5 l/min
  • Seal material: FKM; O-Ring: NBR
  • Supply: DC
  • Ports (BSPP): 3/8"
  • Recommended hose internal diameter: 13 mm
  • IP protection rating: IP65
  • Motor power: 90 W; Weight: 1.8 kg; Cables: yes
