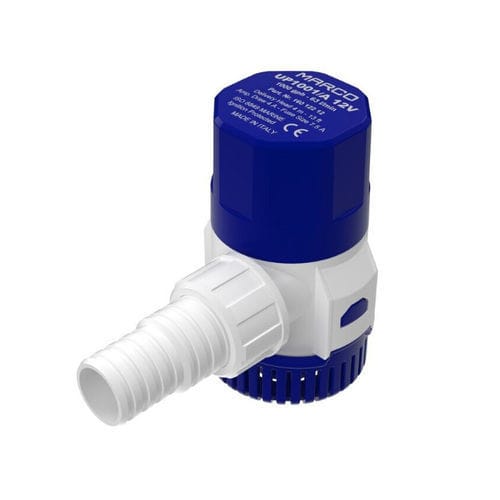

Boat pump UP1001/A

marinebilgefor water

Description
Compact automatic submersible bilge pump for onboard use, available in 12 V and 24 V variants. Integrated electronics monitor water presence continuously and start the pump automatically without float switches, reducing external wear points. Bayonet motor–impeller coupling enables motor replacement without disconnecting hoses or removing the pump body from the bilge. Multifunction hose fittings accept two diameters for flexible installation and retrofit. Built-in check valve prevents backflow and ensures complete bilge drainage. Certified to ISO 8849 and ISO 8846.

Technical table
Part no. | Product name | Voltage (V) | Max current (A) | Fuse (A) | Max head (m) | Priming (m) | Max flow (l/min) | Max pressure (bar) | Seal | O-Ring | Type | Hose (mm) | Protection IP | Motor power (W) | Dimensions (mm) | Weight (kg)
16012212 | UP1001/A | 12 | 4 | 7.5 | 4 | - | 63 | 0.4 | NBR | NBR | DC | 25 | IP67 | 48 | Ø67x118x135 | 0.5
16012213 | UP1001/A | 24 | 2.5 | 5 | 4 | - | 63 | 0.4 | NBR | NBR | DC | 25 | IP67 | 60 | Ø67x118x135 | 0.5

Features / technical specifications

• Model: UP1001/A
• Available variants / part numbers: 16012212 (12 V), 16012213 (24 V)
• Voltage: 12 V (16012212) and 24 V (16012213)
• Maximum flow: 63 l/min
• Maximum pressure: 0.4 bar
• Maximum head: 4 m
• Maximum current: 4 A (12 V), 2.5 A (24 V)
• Recommended fuse: 7.5 A (12 V), 5 A (24 V)
• Motor power: 48 W (12 V), 60 W (24 V)
• Seals: NBR (seal and O-ring)
• Type: DC
• Hose connection: 25 mm (multifunction fittings compatible with two hose diameters)
• Protection rating: IP67
• Dimensions: Ø67 x 118 x 135 mm
• Weight: 0.5 kg
• Key design features: integrated electronics for continuous water detection and automatic start without float switch; bayonet motor–impeller coupling for motor replacement without removing pump body; multifunction hose fittings for installation flexibility; integrated check valve to prevent backflow and ensure complete bilge drainage
• Certifications: ISO 8849, ISO 8846
