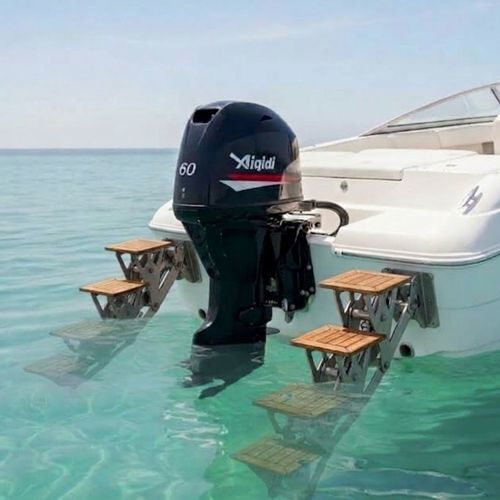

Boarding steps EasyStep 4

Product overview
EasyStep 4 is a single-arm, self-leveling boarding and sea-access system engineered to combine safety, versatility and long-term durability. Its articulated pantograph kinematics ensure a perfectly parallel motion, keeping the steps horizontal throughout the entire stroke.

Features

• Dual drive system: available with an electric actuator or a high-performance hydraulic system.
• High load capacity:
  • Electric version: 120 kg maximum payload.
  • Hydraulic version: 160 kg maximum payload.
• Anti-warping treads: teak steps bonded to marine plywood with a protective painted bottom coating designed to resist repeated saltwater immersion without deformation.
• Swim platform configuration: the two bottom steps can be connected to form a single continuous stern platform behind an outboard engine.
• Integrated safety: quick-release stainless steel stanchions fitted with a high-strength black marine rope handrail.

TECHNICAL SPECIFICATIONS
Structure weight: 50 kg (single arm)
Load capacity: Electric (120 kg) / Hydraulic (160 kg)
Number of steps: 4 self-leveling steps (option to connect 2 steps into a swim platform)
Step material: Teak bonded to marine plywood with painted bottom
Frame material: AISI 316L stainless steel
Mounting: Transom / bulkhead plate (Flush Mount / Transom Bracket)
Safety features: 2 stainless steel stanchions + rope handrail

Technical data

• Structure weight: 50 kg (single arm)
• Load capacity: Electric 120 kg / Hydraulic 160 kg
• Number of steps: 4 self-leveling (option to join last two steps into swim platform)
• Step material: Teak bonded to marine plywood with protective bottom coating
• Frame material: AISI 316L stainless steel
• Mounting: Transom / bulkhead plate (Flush Mount / Transom Bracket)
• Safety equipment: 2 stainless steel stanchions with rope handrail
• Drive options: Electric actuator or hydraulic system
