Boat gangway Jump 240

for yachttelescopichydraulic

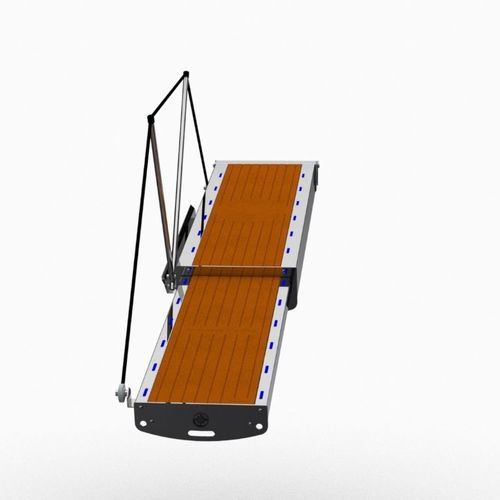

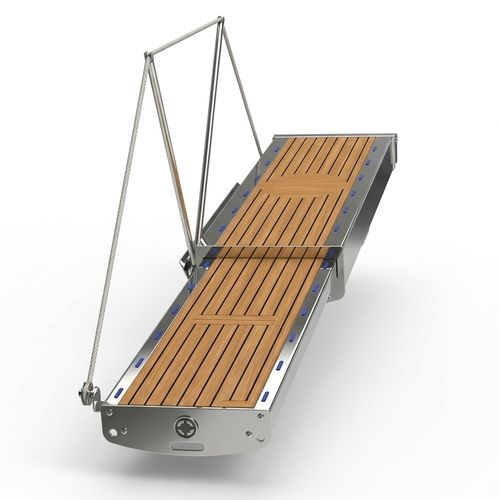

Overview Jump 240 is a two-sector sliding hydraulic gangway designed for medium-small boats. It supports a tender complete with engine and includes a dock approach function to facilitate boarding and landing. The optional two-arm handrail opens and closes automatically with the sliding surface and stows in a dedicated side container.

Construction Features The supporting structure is manufactured in AISI 316 stainless steel. Platforms are in EASY TEAK composite (manufactured by Compass Marine) and can be customized on request. Critical mechanical points are secured with AISI 316 stainless steel pins and screws produced in-house. Handrail rope stops are aluminium for easy replacement or retensioning. Pistons and pipe fittings are made entirely of AISI 316 stainless steel. The gangway is fully removable by screws to simplify servicing; spare parts are available individually.

Hydraulic Unit The hydraulic power unit includes a 500 Watt motor with drive coil, a safety valve with pressure adjustment, an oil flow tap for lift speed regulation, and four solenoid valves.

Electric Control Unit The electric control unit is designed for bilge fixation and is enclosed in an IP77 protected box. It contains the complete electrical drive section and the 4-channel radio receiver supplied in the kit. Wiring to the control unit is pre-connected to simplify electrical installation. A radio transmitter and a control keyboard with the option of a joystick or stainless steel buttons are supplied as standard.

Technical Specifications

• Model: Jump 240
• Structure: AISI 316 stainless steel
• Platforms: EASY TEAK composite (customizable)
• Hydraulic motor: 500 Watt
• Hydraulic controls: safety valve, pressure adjustment, flow tap, 4 solenoid valves
• Electric control unit: IP77 protected box, includes 4-channel radio receiver and pre-wired connections
• Control: radio transmitter and control keyboard (joystick or stainless steel buttons)
• Maximum guaranteed load at full extension: 300 Kg
• Total product weight (including pistons): 90 Kg
• Sliding table stroke: 980 mm max
• Pistons and critical fasteners: AISI 316 stainless steel
• Handrail: optional two-arm automatic opening/closing and stowage

Customization

• Length and width measurements
• Presence of RH / LH / BOTH handrail
• Finishes
• Decking material
• Lighting along the walkway
• Writings and custom drawings on request
