Platform tender chock

for decksternfor boat

Product overview

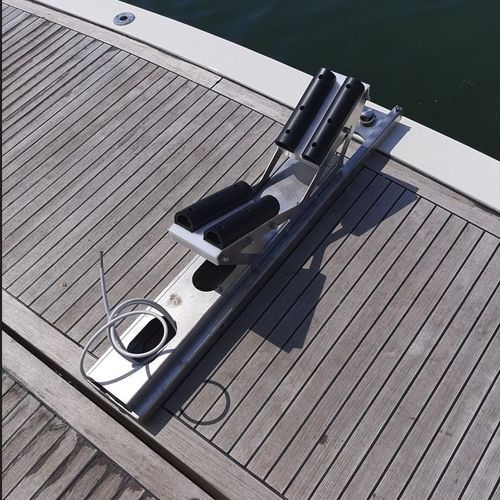

The STC700 is a pair of cradles designed to house the tender hull. The system is suitable for installation inside a yacht garage or on stern platforms.

Operation and installation
The cradles are removable using the quick couplings supplied. Secure the four mounting cups to the deck to fix the two guides. The guides provide a 70 cm stroke and release is manual via a plastic-coated stainless steel tie rod.

Structure and capability
The STC700 is engineered to support the tender in a cantilevered position relative to the guide support surface, allowing the tender to be moved beyond the perimeter of the stern platform.

Customization and protection
Hull housings can be customized to the required geometry. A special rubber profile ensures adhesion to the cradles without risking hull damage. Each complete guide weighs 20 Kg.

Features

• Pair of cradles for tender hull housing
• Usable inside yacht garage and on stern platforms
• Removable system with quick couplings
• Fixing requires four mounting cups fixed to the deck
• Guides provide 70 cm stroke
• Manual release via plastic-coated stainless steel tie rod
• Designed for cantilevered load to allow overhanging tender position
• Customizable hull housing geometry
• Special rubber profile to protect hull
• Weight of each complete guide: 20 Kg

Technical specifications

• Model: STC700
• Stroke of guides: 70 cm
• Release: manual (plastic-coated stainless steel tie rod)
• Fixing: four mounting cups to be fixed on the deck
• Each complete guide weight: 20 Kg
• Hull housing: customizable geometry
• Protection: special rubber profile to avoid hull damage
• Application: yacht garage and stern platform
