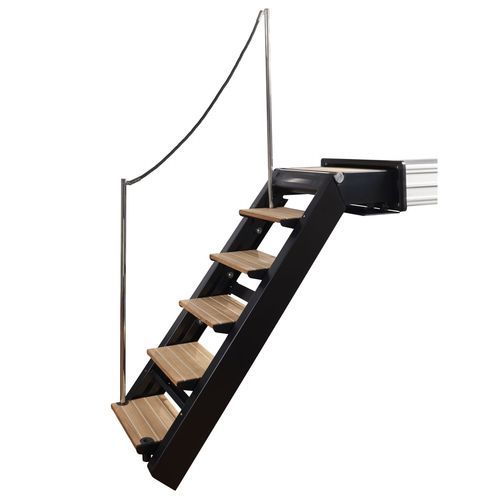

Multifunction ladder MITO 5

for boatfor yachtretractable

Description
Constructed from treated stainless steel with a polyester paint finish (colour customizable on request). Steps are teak mounted on a stainless steel frame. Electro-hydraulic extension and up/down movement. Operating angle: from +45° to -50°. The handrail can be installed using manual stanchions, on the left or right side.

Dimensions and weight

• Horizontal extension: 1.75 m
• Weight: 250 kg (including crate)
• Maximum load: 150 kg

Features / technical specifications

• Frame material: treated stainless steel
• Finish: polyester paint (colour customizable on request)
• Steps: teak mounted on stainless steel frame
• Operating system: electro-hydraulic extension and up/down movement
• Operating angle: from +45° to -50°
• Handrail: installable using manual stanchions, left or right side
• Horizontal extension: 1.75 m
• Total weight (including crate): 250 kg
• Maximum load: 150 kg
