Multifunction ladder Wave

for boatfor yachtretractable

Product

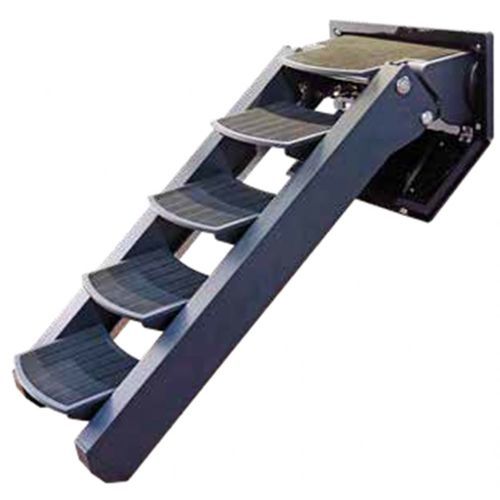

Wave multifunction retractable ladder designed for marine use and shore disembarking. Constructed for installation on vessels and platforms where controlled extension and reliable vertical movement are required.

Models

• Wave 4: 4+1 steps
• Wave 5: 5+1 steps
• Wave 6: 6+1 steps

Materials and Finish
Frame and structure in treated aluminium and stainless steel with polyester coating (custom colour available). Steps in customizable Easy Teak. On request the load-bearing step structure can be supplied in carbon fibre.

Mechanism and Operation
Electro-hydraulic extension and vertical movement system. Operating angle range from +39° to -40°. Handrail can be fitted using manual stanchions for safe embarkation/disembarkation.

Dimensions and Capacity

• WAVE 4: horizontal extension length 1.20 m; weight 95 kg (including aluminium box)
• WAVE 5: horizontal extension length 1.50 m; weight 100 kg (including aluminium box)
• WAVE 6: horizontal extension length 1.75 m; weight 102 kg (including aluminium box)
• Rated load capacity: 200 kg

Applications
Designed for maximum versatility in marine settings: boarding ladders, crew/passenger embarkation, tender access and shore disembarkation on yachts, workboats and service vessels.

Technical specifications

• Series: Wave
• Type: retractable multifunction ladder
• Materials: treated aluminium and stainless steel
• Finish: polyester coating (custom colour available)
• Steps: Easy Teak, customizable
• Optional: step load-bearing structure in carbon fibre (on request)
• Mechanism: electro-hydraulic extension and vertical movement
• Operating angle: +39° to -40°
• Handrail: installable via manual stanchions
• Horizontal extension lengths: Wave 4 = 1.20 m; Wave 5 = 1.50 m; Wave 6 = 1.75 m
• Weights (including aluminium box): Wave 4 = 95 kg; Wave 5 = 100 kg; Wave 6 = 102 kg
• Rated load: 200 kg
• Number of steps: Wave 4 = 4+1; Wave 5 = 5+1; Wave 6 = 6+1
