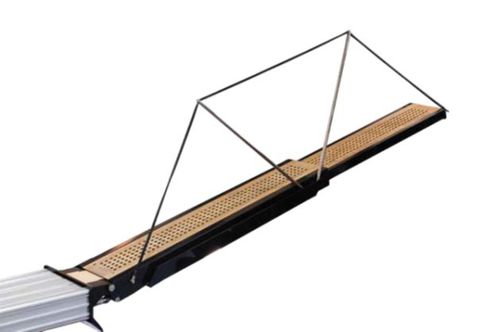

Yacht gangway Swim 270

telescopicretractablehydraulic

Overview
The Swim 270 and Swim 350 are retractable gangways designed for installation on medium and large yachts. These models illustrate Compass Marine’s approach to custom design and manufacture of marine access systems for leisure and commercial vessels.

Movement and Dimensions
The Swim gangways comprise two telescopic sections.

• Total length (fully extended): 270 cm or 350 cm
• Maximum width: 50 cm
• Minimum width at the tip: 45 cm
• Vertical travel: ±10°

The movement system is electro-hydraulic, managed by a programmable PLC. Standard operation via fixed control panel or remote control. Integrated limit switches ensure safe stowage and deployment.

Structure and Materials
The load-bearing structure is entirely AISI 316 stainless steel; the walking surface is teak grating with alternative materials available on request. All critical mechanical components (pins, screws, pistons) are manufactured in AISI 316 stainless steel. The folding handrail retracts automatically during stowage. Design load capacity: up to 150 kg at full extension.

Customization Options
Swim gangways can be customized to project requirements:

• Custom length and width
• Optional handrail configurations
• Choice of finishes
• Alternative walking surface materials
• Integrated LED lighting along the walkway
• Custom engravings, logos or decorative patterns

Technical specifications

• Model series: Swim series
• Available nominal lengths: 270 cm, 350 cm (fully extended)
• Maximum width: 50 cm
• Minimum tip width: 45 cm
• Vertical travel: ±10°
• Number of telescopic sections: 2
• Movement system: Electro-hydraulic
• Control unit: Programmable PLC, software customizable
• Control interfaces: Fixed control panel (standard) and remote control (standard)
• Safety: Integrated limit switches
• Load-bearing structure material: AISI 316 stainless steel
• Walking surface: Teak grating (customizable)
• Critical mechanical components (pins, screws, pistons): AISI 316 stainless steel
• Folding handrail: Automatically retracts during stowage
• Design load capacity: Up to 150 kg at full extension
• Customization: length/width, handrail options, finishes, walking surface materials, integrated LED lighting, custom engravings/logos/decorative patterns
