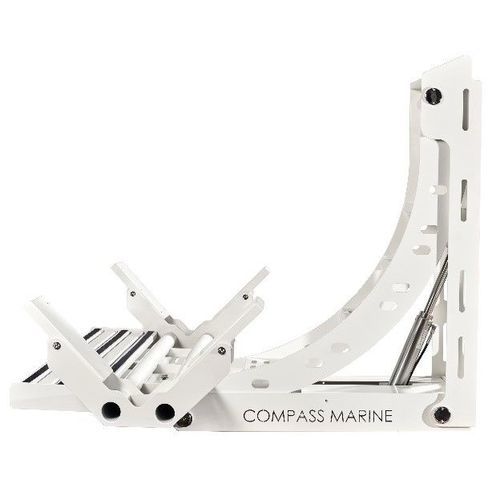

Jet-skis lift JSL-300

boat-mountedyacht-mountedhydraulic

Commercial name
Compass Marine Jet Ski Lift JSL-300

Overview
Developed for the 15th anniversary of Compass Marine, the JSL-300 is a dedicated jet-ski lifting system designed for onboard use. It balances structural strength, straightforward operation and onboard safety, and can also be used as a secondary swimming platform.

Technical description and operation
The JSL-300 is composed of:

• mounting plate for attachment to the vessel
• lifting column
• circular stepped structure functioning as a movable arm
• loading/unloading platform with adjustable skids for secure support of the personal watercraft

Movement is electro-hydraulic and includes:

• an automatic mechanical lock engaged at the end of lifting to allow safe navigation
• automatic release of the lock at the start of descent
• an integrated sensor that detects incorrect arm position and prevents unsafe conditions

The circular shape and rotation system are engineered to provide a robust, compact and lightweight structure.

Versatility of use
When no personal watercraft is on board, the JSL-300 converts into a convenient swimming platform: integrated steps in the movable arm and the waterline beach area provide easy access to the sea, making the system suitable as a leisure point for crew and guests.

Safety and reliability
Redundancy in control systems has been prioritized: in addition to the mechanical lock and position sensor, the electro-hydraulic logic ensures smooth, precise movements that can be operated by non-specialized personnel.

Customization
Compass Marine offers tailor-made customization options for dimensions, load capacity and aesthetics to adapt the system to different types of yachts and vessels.

Specifications

• Material: AISI 316 stainless steel (marine corrosion resistance)
• Overall dimensions: 150 × 130 × 150 cm
• Arm extended length: 250 cm
• Vertical travel: approx. 80 cm
• Maximum PWC length supported: up to 3 m
• Maximum capacity: 300 kg
• System weight: approx. 150 kg
• Movement system: electro-hydraulic with automatic mechanical lock
• Loading platform with adjustable skids
• Secondary function: swimming platform with integrated steps
• Options: customization of dimensions, capacity and aesthetics
