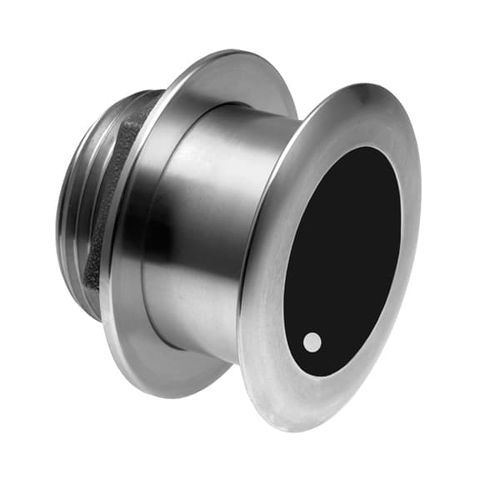

Depth transducer SS175HW
water temperatureacousticfor boats

depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Characteristics

Measured value
depth, water temperature, acoustic
Application domain
for boats
Applications
fishfinder
Other characteristics
ultrasonic, tilted through-hull, CHIRP

Description

Get more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam, transducer options. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500’). Tilted Element™ transducers have the element fixed at either a 20°, 12° or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise and orients the ceramic element horizontally to ensure maximum echo returns to the transducer. The SS175HW transmits across the following bandwidth: High frequency 150 to 250 kHz The SS175HW is available in three Tilted Element models: Fixed 20° tilted version for 16° to 24° hull deadrise Fixed 12° tilted version for 8° to 15° hull deadrise Fixed 0° tilted version for 0° to 7° hull deadrise Features Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 152 m (500') High frequency: 150 to 250 kHz Constant 25° beam 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
