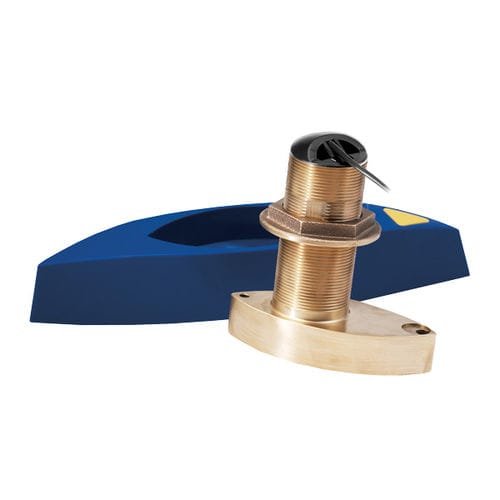

Depth transducer B765LH
water temperatureacousticfor boat

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, water temperature, acoustic
Application domain
for boat
Other characteristics
ultrasonic, through-hull, CHIRP


It’s a thru-hull, Chirp transducer perfectly suited for smaller fishing boats. The B765LH gives the performance of the larger transducers but in a compact package for smaller boats. A great combination of low and high-frequency bands provides a wide range of depth capability and fish finding. The low-frequency band provide excellent depth penetration while the high-frequency range excels at shallow-water performance, bottom detail, and target resolution. The included high-performance fairing improves broadband performance at speeds over 30 knots (34 MPH). The B765LH transmits across the following bandwidths: Low frequency 40 to 75 kHz, High frequency 130 to 210 kHz Features: Depth and fast-response water-temperature sensor 300 W low frequency*, 600 W high frequency* Low frequency: 40 to 75 kHz -32° to 21° beamwidth -Depth performance to 366 m (1,200') High frequency: 130 to 210 kHz -15° to 9° beamwidth -Depth performance to 213 m (700') 115 kHz of total bandwidth from one transducer means great shallow and deep-water performance Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth All the advantages of the larger thru-hull, Chirp transducers yet suitable size-wise for smaller boats Bronze housing with high-performance fairing for optimal performance at higher speeds Exclusive Xducer ID® technology Specifications: Weight: 2.5 kg (5.5 lb.) Recommended Boat Length: Up to 9 m (30') Hull Material: Fiberglass or wood Hull Deadrise: Up to 24° with fairing Acoustic Window: Urethane Hole Diameter: 51 mm or 2" Includes: High-performance fairing and mounting hardware
