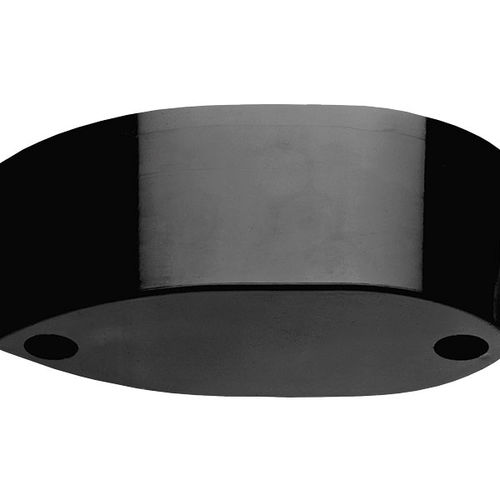

Depth transducer M563
acousticwater temperaturefor commercial fishing boats

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, acoustic, water temperature
Application domain
for commercial fishing boats, oceanographic research
Other characteristics
ultrasonic, CHIRP


This version of Airmar’s M563 offers excellent sensitivity and Broadband Performance throughout low and high-frequency bands. This performance allows crisp waveforms at discrete frequencies or allows Broadband Chirp or coded waveforms. Applications: Commercial Fishing Shallow and coastal survey Features: Two broadband arrays minimize ringing and allow sharp, crisp acoustic pulses and excellent clarity Narrow beams and low sidelobes provide clear bottom detail Matching transformers provide pure, resistive load Can be mounted on a towed body, directly to a wood, steel, or fiberglass hull (can also be mounted as an in-hull in a fiberglass hull for precise echosounding) Streamlined shape minimizes drag Chirp-ready Seamless, SEALCAST™, urethane housing for long life underwater High precision temperature probe Exclusive Xducer ID® technology Specifications: Weight: 10 kg (22 lb) Acoustic Window: Urethane Cable Type: C-44-02 Three shielded twisted pair (two 2-18 AWG and one 2-22 AWG) with foil and braided shield overall, black TPR jacket, 11 mm (7/16”) diameter


2 Pages
