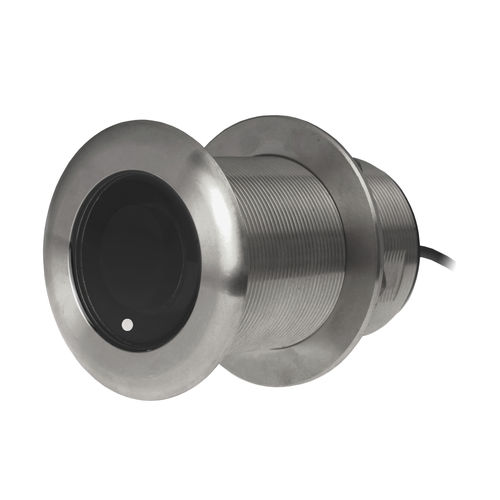

Depth transducer SS75L
water temperatureacousticfor boat

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, water temperature, acoustic
Application domain
for boat
Other characteristics
ultrasonic, tilted through-hull, CHIRP


Airmar’s low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band is the deep-water performer delivering excellent coverage and tracking. The SS75L transducer delivers up to 35 kHz of total bandwidth in just one installation for tremendous deep-water performance. The SS75L transmits across the following bandwidth: -Low frequency 40 to 75 kHz This Tilted Element™ transducer has the ceramic element fixed at either a 12° or 0° angle within the housing. The transducer is installed almost flush to the hull, so the tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings. The SS75L is available in two Tilted Element models: -Fixed 12° tilted version for 8° to 24° hull deadrise -Fixed 0° tilted version for 0° to 7° hull deadrise Features: Depth and fast-response water-temperature sensor 300 W with maximum depth performance to 353 m (1,200') Low frequency: 40 to 75 kHz -32° to 21° beamwidth Great deep-water performance Low-profile, thru-hull housing provides good resolution at speed when installed properly Stainless steel housing for use on stepped, planing or displacement hull Also available in a bronze housing (B75L) for use in a fiberglass or wood hull Exclusive Xducer ID® technology Specifications: Weight: 1.4 kg (3 lb.) Recommended Boat Length: Up to 8 m (25') Hull Material: Compatible with all hull materials Hull Deadrise: Up to 24° Acoustic Window: Urethane Hole Diameter: -Fiberglass or wood hull—70 mm or 2-13/16" -Metal hull—79 mm or 3-1/8"
