Get more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.
The included high-performance fairing improves broadband results at speeds over 30 knots (34 MPH).
The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500').
The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s dual-frequency, Chirp-ready transducers with wide-beam coverage.
Depth and fast-response water-temperature sensor
1 kW for great deep-water performance from the low frequency
Low frequency: 42 to 65 kHz
-25° to 16° beamwidth
-Maximum depth of 914 m (3,000')
High frequency: 150 to 250 kHz
-25° constant beamwidth
-Maximum depth of 152 m (500')
123 kHz of total bandwidth from one transducer
Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
High wide beamwidth yields more coverage for detecting fish in the upper-water column

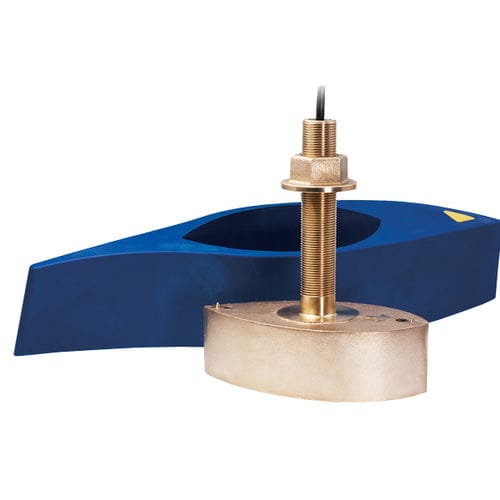

Bronze housing with high-performance fairing for optimal performance at higher speeds
Also available as transom (TM275LHW) and pocket/keel (PM275LHW) mounts
Exclusive Xducer ID® technology
