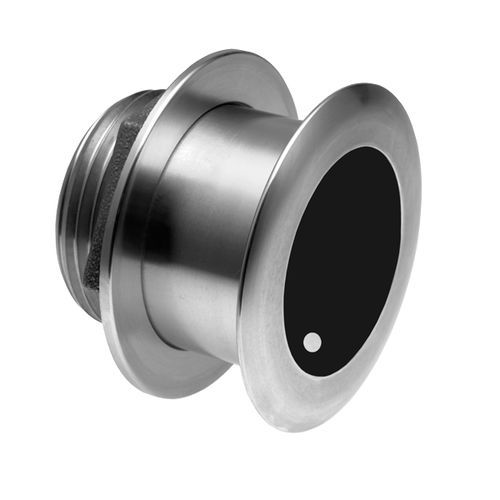

Depth transducer SS175M
water temperatureacousticfor boat

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, water temperature, acoustic
Application domain
for boat
Other characteristics
ultrasonic, tilted through-hull, CHIRP


Medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1,500') and delivers ultra-clear target resolution. The SS175M transmits across the following bandwidth: Medium frequency 85 to 135 kHz Tilted Element™ transducers have the element fixed at a 20°, 12° or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer. The SS175M is available in three Tilted Element models: Fixed 20° tilted version for 16° to 24° hull deadrise Fixed 12° tilted version for 8° to 15° hull deadrise Fixed 0° tilted version for 0° to 7° hull deadrise Features Depth and water-temperature sensor 1 kW with a maximum depth of 457 m (1,500') Medium frequency: 85 to 135 kHz 16° to 11° beamwidth 50 kHz of total bandwidth from one transducer Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Low-profile, thru-hull housing provides good resolution at speed when installed properly Stainless steel housing for use on stepped, planing or displacement hull Also available in a bronze housing (B175M) for use in a fiberglass or wood hull Exclusive Xducer ID® technology
