Depth transducer B765LM
water temperatureacousticfor boats

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Characteristics

Measured value
depth, water temperature, acoustic
Application domain
for boats
Applications
fishfinder
Other characteristics
ultrasonic, through-hull, CHIRP

Description

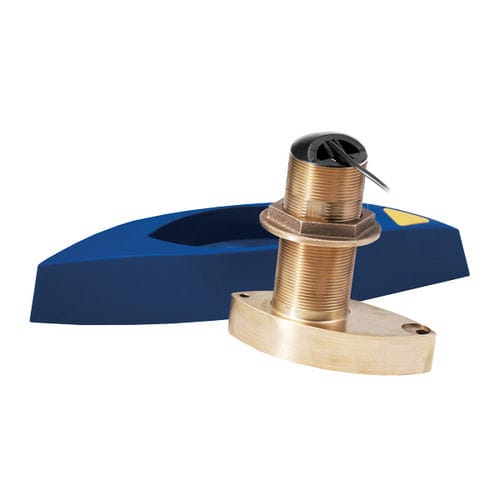

The B765LM is a thru-hull Chirp transducer perfectly suited for smaller fishing boats, delivering the performance of larger transducers in a compact package for smaller boats. A great combination of low and medium-frequency bands provides a wide range of depth capability and fish finding. The low-frequency band provide excellent depth penetration while the medium frequency excels at detail like bottom structure and tight-holding fish targets in mid-depth. The included high-performance fairing improves broadband performance at speeds over 30 knots (34 MPH). The B765LM transmits across the following bandwidths: Low frequency 40 to 75 kHz, Medium frequency 80 to 130 kHz *NOTE: Low-frequency band operates at 300 W. Medium-frequency band operates at 600 W. Features: Depth and fast-response water-temperature sensor 300 W low frequency* and 600 W medium frequency Low frequency: 40 to 75 kHz -32° to 21° beamwidth -Depth performance to 366 m (1,200') Medium frequency: 80 to 130 kHz -24° to 16° beamwidth -Depth performance to 274 m (900') 85 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidth All the advantages of the larger, thru-hull, Chirp transducers yet suitable size-wise for smaller boats Bronze housing with high-performance fairing for optimal performance at higher speeds Recommended boat size: Up to 9 m (30') Hull Type: Fiberglass or wood Exclusive Xducer ID® technology Specifications: Weight: 2.5 kg (5.5 lb.) Recommended Boat Length: Up to 9 m (30') Hull Material: Fiberglass or wood Hull Deadrise: Up to 24° with fairing Acoustic Window: Urethane Hole Diameter: 51 mm or 2"

Catalogs

No catalogs are available for this product.

See all of Airmar‘s catalogs
