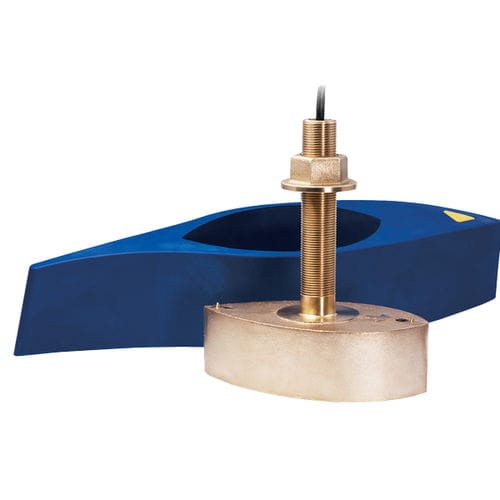

Depth transducer B265LM
water temperatureacousticfor boat

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, water temperature, acoustic
Application domain
for boat
Other characteristics
ultrasonic, through-hull, CHIRP


The B265LM, Chirp-ready transducer is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW, powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths. The low-frequency band provides deep-water performance down to 914 m (3,000') and is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band is excellent for identifying targets suspended close to the bottom, on structure, and within the water column. The included, high-performance fairing improves broadband performance at speeds over 30 knots (34 MPH). Low frequency 42 to 65 kHz, Medium frequency 85 to 135 kHz Features: Depth and fast-response water-temperature sensor 1 kW power for excellent deep to mid-depth performance Low frequency: 42 to 65 kHz -25° to 16° port-starboard beamwidth -Maximum depth 914 m (3,000') Medium frequency: 85 to 135 kHz -16° to 11° beamwidth -Maximum depth 457 m (1,500') 73 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths Bronze housing with high-performance fairing for optimal high-speed performance Also available as transom mount (TM265LM), pocket mount (PM265LM), cavity mount (CM265LM), in-hull (M265LM) Exclusive Xducer ID® technology Specifications: Weight: 7.3 kg (16 lb.) Recommended Boat Length: 8 m (25') and above Hull Material: Fiberglass or wood Hull Deadrise: Up to 20° with fairing Acoustic Window: Urethane Hole Diameter: 33 mm or 1-5/16"
