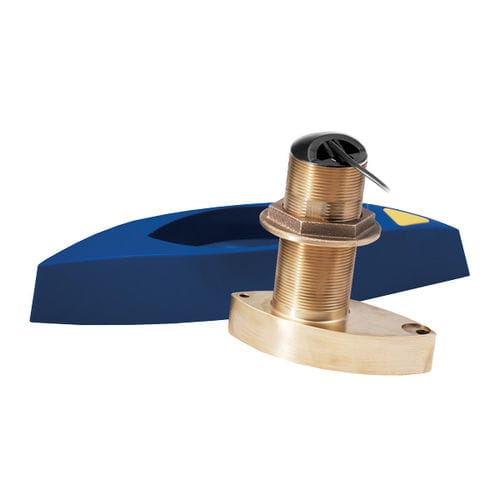

Depth transducer B785M
water temperatureacousticfor boat

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, water temperature, acoustic
Application domain
for boat
Other characteristics
ultrasonic, through-hull, CHIRP


The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900') along with ultra-clear target resolution. The included high-performance fairing improves broadband performance at speeds over 30 knots (34 MPH). A thru-hull, Chirp transducer perfectly suited for smaller fishing boats, the B785M Chirps across the following bandwidth: -Medium frequency 80 to 130 kHz Features: Depth and fast-response water-temperature sensor 600 W Medium frequency: 80 to 130 kHz -24° to 16° beamwidth -Maximum depth of 274 m (900') 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Bronze housing for use on planing or displacement hull High-performance fairing for optimal performance at higher speeds Also available in a low-profile, thru-hull (B75M) model Exclusive Xducer ID® technology Specifications: Weight: 2.5 kg (5.5 lb.) Recommended Boat Length: Up to 9 m (30') Hull Material: Fiberglass or wood Hull Deadrise: Up to 24° with fairing Acoustic Window: Urethane Hole Diameter: 51 mm or 2" Includes: High-performance fairing and mounting hardware
