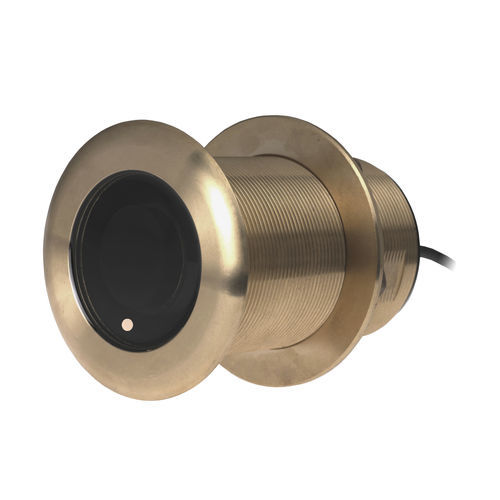

Depth transducer B75M
water temperatureacousticfor boat

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, water temperature, acoustic
Application domain
for boat
Other characteristics
ultrasonic, tilted through-hull, CHIRP


Airmar’s low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The B75M transducer delivers up to 50 kHz of total bandwidth in just one installation. It shows amazing bottom detail in shallow and medium depths down to 274 m (900'). B75M transmits across the following bandwidth: -Medium frequency 80 to 130 kHz Tilted Element transducers™ have the ceramic element fixed at a 20°, 12° or 0° angle within the housing. The transducer is installed almost flush to the hull, so the tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer and more accurate depth readings. The B75M is available in three Tilted Element models: -Fixed 20° tilted version for 16° to 24° hull deadrise -Fixed 12° tilted version for 8° to 15° hull deadrise -Fixed 0° tilted version for 0° to 7° hull deadrise Features: Depth and fast-response water-temperature sensor 600 W with a maximum depth performance to 274 m (900') Medium frequency: 80 to 130 kHz -24° to 16° beamwidth Medium frequency provides good shallow-water performance, bottom detail, and deeper performance than high-frequency band Low-profile, thru-hull housing delivers good resolution at speed when installed properly Bronze housing for use on stepped, planing or displacement hull Also available in a stainless steel housing (SS75M) suitable for all hull materials Exclusive Xducer ID® technology
