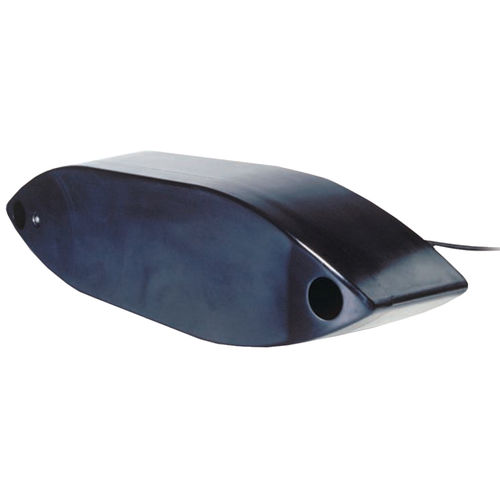

Depth transducer R109LHW
acousticwater temperatureboat

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Characteristics

Measured value
depth, acoustic, water temperature
Application domain
boat
Applications
fishfinder
Other characteristics
ultrasonic, CHIRP

Description

Get more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500'). The low-frequency band and 2 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s dual-frequency, Chirp-ready transducer with wide-beam coverage. Features Depth and fast-response water-temperature sensor 2 kW of power for great deep-water performance from the low frequency 2 kW low frequency: 38 to 75 kHz 19° to 10° port-starboard beamwidth 10° to 5° fore-aft beamwidth Maximum depth of 1,829 m (6,000') 1kW high frequency: 150 to 250 kHz 25° constant beamwidth Maximum depth of 152 m (500') 137 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50, 68, and 200 kHz plus everything else in the bandwidth High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation High wide beamwidth yields more coverage for detecting fish in the upper-water column Urethane housing with fairing for optimal performance Also available as a pocket/keel (PM111LHW) mount Exclusive Xducer ID® technology
