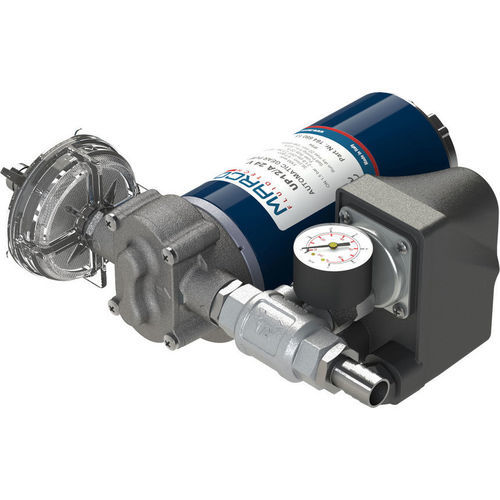

Boat pump UP12/A

transferwater pressure systemfor water

Self-priming electric pump designed for automatic water pressure systems on boats, motorhomes and similar applications. It features PEEK helical gears, an in-line filter, an integrated pressure switch and check valve, and a nickel-plated brass body with a stainless steel shaft.

Key features:

• Self-priming electric pump with PEEK helical gears for wear resistance and low noise
• Equipped with in-line filter to protect the pump from debris
• Integrated pressure switch and check valve for automatic operation
• Nickel-plated brass pump body with stainless steel shaft for corrosion resistance

Spare parts:

• R6400099
• R6400088
• R6400037
• R6400015
• R6400103
• R6400094
• R6400077
• R6400018
• R6400014

Accessories & documents:

• AT2 expansion tank, white, 5 l
• ATX2 expansion tank, stainless, 2 l with T connection 1/2"
• AT1 expansion tank, white, 2 l
• Booklet (technical manual) EN: UP12-A_00_ENG.pdf (PDF)
• iFixit page with dismantling/repair information
• 3D model / technical drawing available

Related products:

• UP3/A pump, 15 l/min
• UP6/A pump, 26 l/min
• UP6/A-AC pump with 20 l tank
• UP9/A heavy-duty pump, 12 l/min

Technical specifications:

• Part number: 16468013
• Model: UP12/A
• Voltage: 24 V DC
• Current absorption: 10 A
• Recommended fuse: 20 A
• Flow rate: 36 l/min
• Suction lift (priming): 3 m
• Max pressure: 2.5 bar
• O-ring material: NBR
• Seal material: FKM
• Supply type: DC
• Ports: 1/2" BSPP
• Recommended hose diameter: 16 mm
• Protection (IP): IP44
• Motor power: 360 W
• Weight: 5 kg
