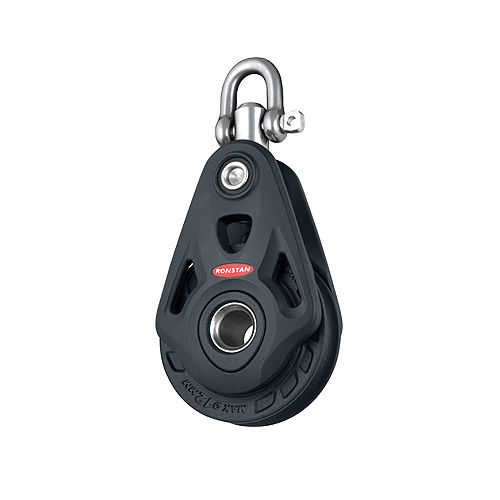

Single block RF64100
cheekfrictionwith swivel

single block
single block
single block
single block
Add to favorites
Compare this product


Characteristics

Number of sheaves
single
Type
cheek, friction
Configuration
with swivel
Bearing type
plain bearing
Maximum line diameter
max. rope ø 12 mm
Application domain
for sailboats
Applications
spinnaker, halyard
Working load

1,000 kg
(2,204.6 lb)

Breaking load

2,000 kg
(4,409.2 lb)

Weight

235 g
(8 oz)

Description

Class leading performance and sleek, contemporary styling Excellent dynamic and high static load performance Less than half the friction of the nearest competitor Universal head with full 3-axis articulation Head posts can be locked at 0 or 90 degrees, by using a 2.5mm Hex/Allen Key Central hub hole can be used as a becket take-off or tie-up point Alloy Rope/Wire sheave version also available Core Blocks™ are a true all round solution. A tuned 2-stage bearing system provides excellent performance across the full working load range with an integrated thrust bearing feature and the resilience to handle high dynamic or static loads. Acetal sheave, alloy cheeks and stainless fixings complete the durable package. For reliability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Universal Bearing - Dynamic and high static load performance The Ronstan Universal Bearing incorporates our proven 2-stage bearing system Stage 1 - Under moderate loads, Acetal ball bearings ensure minimum friction. Stage 2 - Under heavy loads, where deformation of ball bearings alone would result in increased friction, a sliding Acetal bearing on a polished stainless steel race takes over, maintaining low friction performance. Additionally the ball bearings are configured to act as a thrust bearing between the sheave and cheeks, preventing the sheave from rubbing on the cheeks and causing friction when the line lead in and out of the block isn’t perfect. Particularly important for cheek blocks.
