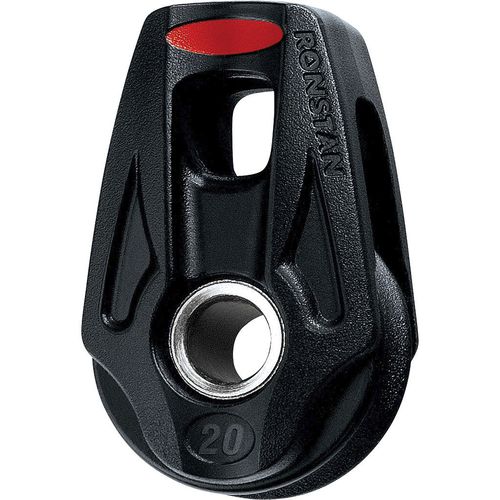

Plain bearing block RF25109
singlelashingmax. rope ø 6 mm

plain bearing block
plain bearing block
Add to favorites
Compare this product


plain bearing
Number of sheaves
Maximum line diameter
max. rope ø 6 mm
Application domain
for sailboats
stainless steel
Working load

250 kg (551.2 lb)

Breaking load

550 kg (1,212.5 lb)


SERIES 20 BALL BEARING RF25109 FEATURES Integrated stainless steel hub to accept lashing attachment and through-sheave becket Suits up to 4mm (5/32”) lashing Includes 750 mm (30") x 1.7mm (1/16") diam lashing cord The incredible Series 20 Orbit Block™ is capable of loads up to 250kg (550lb) while weighing a mere 9 grams. It’s so light that it needs to be lashed down! Series 20 BB Orbit Block™ Lashing Head User Instructions N.B. Block must be lashed through hub. M.W.L. & B.L. are dependent on the strength of lashing. Knots, splices, stitching will generally have a lower B.L. than the line itself. Sheave Ø20 mm Max. Rope Ø6 mm Max. Cable Ømm Pin Ø- mm M.W.L.250 kg B. L.550 kg Weight9 g Leech / control lines Cunninghams Sheave: high compression strength carbon black Acetal Frame:/Cheeks: Toughened, glass fibre reinforced Nylon Load straps and ball bearings: Grade 316 stainless steel
