cheek block / flat / single / with fork
RF418C

Add to MyNauticExpo favorites
Compare this product Don’t compare this product

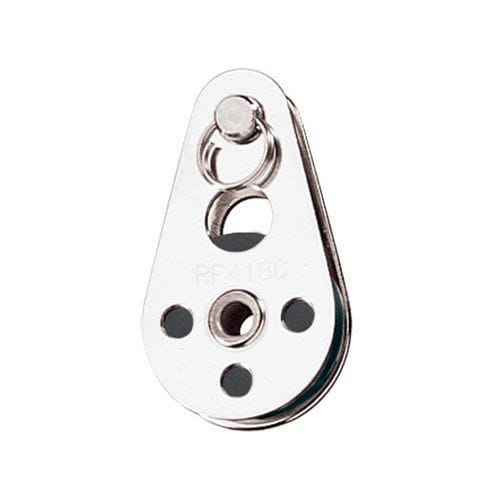

cheek block cheek block - RF418C
{{requestButtons}}

Characteristics

  • Type:

    cheek, flat

  • Number of sheaves:

    single

  • Configuration:

    with fork

  • Maximum wire rope diameter:

    max. wire rope ø 4 mm

  • Application domain:

    for sailboats

  • Applications:

    for cables, backstay

  • Material:

    stainless steel

  • Working load:

    450 kg (992.1 lb)

  • Breaking load:

    900 kg (1,984.2 lb)

Description

Features

Removable clevis pin head


Product Information

Wire blocks have purpose deisgned narrow sheaves and grooves.


Sheave Ø25 mm
Max. Rope Ø- mm
Max. Cable Ø3 mm
Pin Ø- mm
M.W.L.450 kg
B. L.900 kg
Weight39 g

Wire blocks suit halyards, vang and backstay applications

Grade 316 stainless steel cheeks.
Nylatron® sheave
