cheek block / vertical / single / max. rope ø 14 mm
RF61171

Add to MyNauticExpo favorites
Compare this product Don’t compare this product

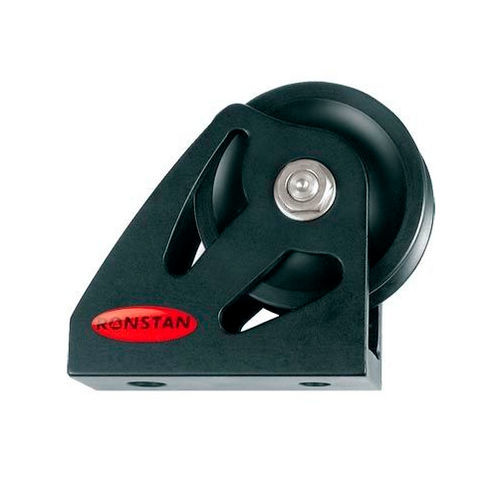

cheek block cheek block - RF61171
{{requestButtons}}

Characteristics

  • Type:

    cheek, vertical

  • Number of sheaves:

    single

  • Maximum line diameter:

    max. rope ø 14 mm

  • Application domain:

    for sailboats

  • Applications:

    halyard

  • Working load:

    1,990 kg (4,387.2 lb)

  • Breaking load:

    3,980 kg (8,774.4 lb)

Description

RF78171

FEATURES
High static and dynamic load capacity
Keeps lines close to the deck
Cheek cut-outs for easy bearing cleaning and maintenance
Blocks can be disassembled for servicing

Ball Bearing models have Torlon® needle rollers for axial loads, and acetal ball bearings for side thrust loads.The self-contained alloy sheave packages provide reliable, low-friction performance at high loads. The high axial loads are carried by Torlon® roller needle bearings, while side thrust loads are taken up by Acetal ball bearings. Block sheave and cheeks ar


Sheave Ø75 mm
Max. Rope Ø14 mm
Max. Cable Ø- mm
Fastener Ø10.0 + 8.0 mm
M.W.L.1990 kg
B. L.3980 kg
Weight352 g
