Standing rigging terminals

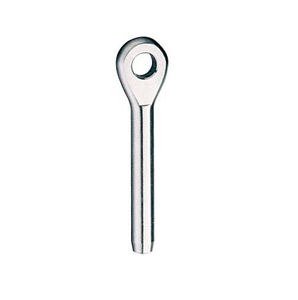

IMPERIAL WIRE RF1500-0303 Product Information Swage eyes are simple and effective wire end termination. Product supplied as the metric equivalent with metric wire code stamping Cable Ø2.4** mm A3.1 mm B6.3 mm C15 mm D48 ...

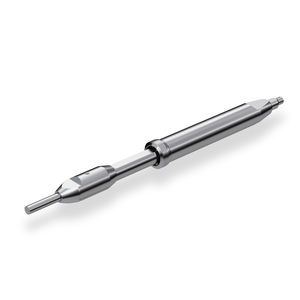

SPECIFICATIONS Wire diameter: 3 mm Thread size: 1/4" HoleDiam: 2.50 mm Y: 48.00 mm Z: 6.50 mm

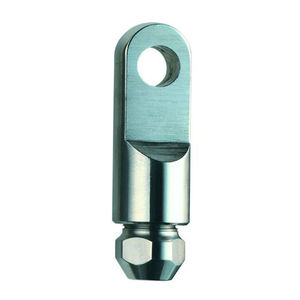

SPECIFICATIONS Weight: 10.00 g Wire diameter: 3.00 mm W: 12 mm Eye diam: 6.50 mm WCLReduct: 16.00 mm X: 3.50 mm Y: 7.00 mm Z: 11.00 mm

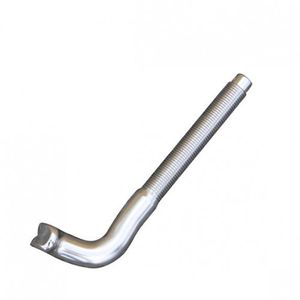

SPECIFICATIONS Weight: 20.00 g Wire diameter: 3 mm WCL Reduct: 41.00 mm Angle: 8 ° Lateral shroud angle: Max 20°
Description:Swage Stud With Nut Material: SS304/SS316 Size:From M5X2.5 to M24X12 Surface Treatment:"EP" (Electro Polished)

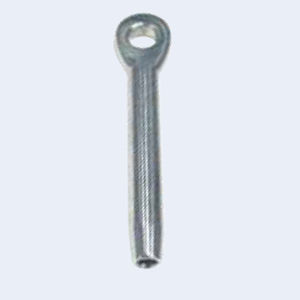

Description:Eye Terminal Material: SS304/SS316 Size:From 2.5MM to 16MM Surface Treatment:"EP" (Electro Polished)

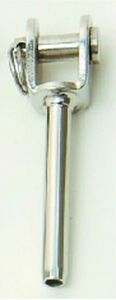

Description:Fork Terminal Material: SS304/SS316 Size:From 2.5MM to 16MM Surface Treatment:"EP" (Electro Polished)

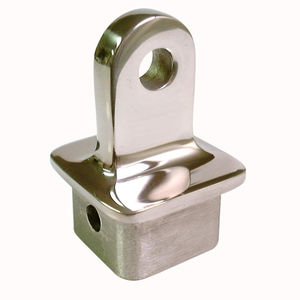

PRODUCT # DESCRIPTION 430 1 1/4" Stainless Steel Square Eye End *For use with 1 1/4" OD Tubing 431 1 1/8" Stainless Steel Square Eye End *For use with 1 1/8" OD Tubing 432 1" Stainless Steel Square Eye End *For ...
FEATURES 316 stainless steel For use with 1 1/4" round tubing Fits inside the tubing
The Blue Wave Thread Terminals all features, engraved wire size, Blue Wave logo, and swage depth marking for faster and easier swaging.
A6152 Wire Stud Terminals Threaded Swaged Stud For 2.5mm Wire 316 stainless steel threaded swaged stud for wire rigging
Description:Eyebolt 6 X 60mm Category:Deck Hardware Subcategory:U and Eye Bolts Series:Eye Bolts Weight (grm):30 Length (mm):60
Sta-Lok Self Fit Terminal, the reusable alternative to swage. Easy to install. Only basic hand tools required. No premeasurement needed. Guaranteed stronger than wire rope. High strength 316 Stainless ...
The MS21254C Stainless Steel also available in 4130 HT-CADIUM PLATED.
The stainless steel Quick Attach™ Toggle features a mechanical swage fitting which allows for fast attachment using simple hand tools and is offered in sizes ranging from 1/8" to 5/16". The swageless toggle can be used ...
Individual component parts are available for purchase giving you maximum flexibility. As we do all of our manufacturing in-house we have the ability to design and make specific parts to customer requirements out a wide range of materials; ...
Provides a fatigue reducing seat for rod cold heads, used in conjunction with tangs and tip cups.
Stainless steel AISI316,the flexible toggle terminal is marked with wire size&hole depth making it easier to work with and to press or swage onto the wire.
