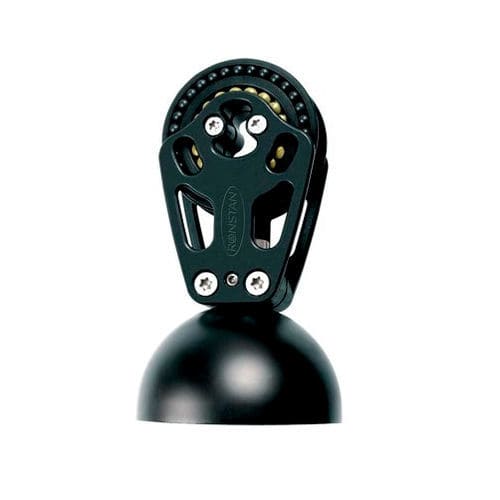

Single block RF69140
frictionverticalwith swivel

single block
single block
Add to favorites
Compare this product


Number of sheaves
friction, vertical
with swivel
Maximum line diameter
max. rope ø 12 mm
Application domain
for sailboats
spinnaker, halyard, for running backstays, backstay
Working load

1,800 kg (3,968.3 lb)

Breaking load

4,000 kg (8,818.5 lb)


398 g (14 oz)


The highest strength-to-weight ratio Minimal friction loss, especially when working at high loads Totally reliable and trouble free performance Simplicity of design and construction to facilitate maintenance and servicing Elegant, functional styling and finish. Lockable swivelling head post High strength forged shackle Orbit blocks™ are a no-compromise product range developed to meet the demands and expectations of the very dedicated and increasingly professional racing sailor. Side cheeks incorporating head structure and hub are precision machined as a single part from solid alloy, leaving material only where it contributes to the load carrying capacity of the block and eliminating the need for additional fasteners. The Orbit sheave has captive acetal or Torlon® ball bearings for side thrust loads, eliminating the need for side retainer plates. This reduces weight and allows for a wider bearing surface that can accommodate longer Torlon® needles – achieving a substantially higher strength-to-weight ratio. The stand-up Orbit blocks are supplied with stainless steel padeyes and rubber support bases. Primary mainsheet, halyard and spinnaker systems on boats to 12m (40ft) Secondary mainsheet, vang systems on boats to 14m (46ft) Standard and running backstay systems on boats to 10m (33ft) General control line and lead block applications on larger yachts
