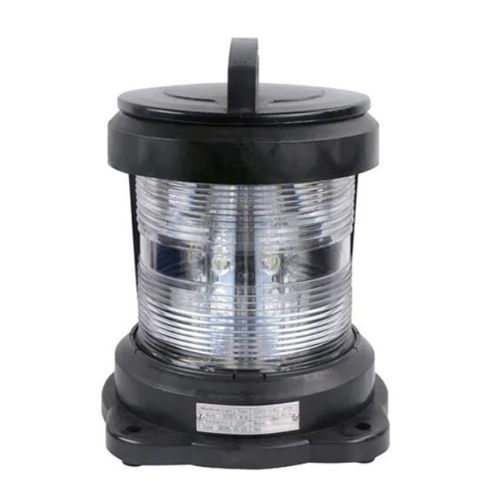

Ship navigation light JN-NAV-008S-S-SLEDwhitebase-mounted
Add to favorites
Compare this product
Characteristics
- Application domain
- for ships
- Light source
- LED
- Color
- white
- Mounting
- base-mounted
- Boat length
- >50 m
- Material
- polyamide
- Voltage
- 12 V, 24 V, 220-240 V
- Housing color
- black
- Protection level
- IP56
- Visibility range
3 M
- Visibility arc
113 °
- Power consumption
8 W
- Service temperature
Max.: 55 °C
(131 °F)Min.: -25 °C
(-13 °F)- Weight
1.5 kg
(3.3 lb)- Length
285 mm
(11 in)- Width
215 mm
(8 in)- Height
215 mm
(8 in)
Description
Short description
Single-lens LED starboard navigation light engineered for vessels ≥50 m. CCS-approved 8 W unit providing a green signal with 3 NM nominal visibility and a 112.5° level arc.
Features
Product specifications
Packaging & Shipping
Additional information
Technical specifications
Single-lens LED starboard navigation light engineered for vessels ≥50 m. CCS-approved 8 W unit providing a green signal with 3 NM nominal visibility and a 112.5° level arc.
Features
- CCS approved for vessels ≥50 m
- IP56 rated for exposed marine environments
- Single-lens masthead/starboard LED design
- Constant current LED driver
- Nominal visibility: 3 NM
- Level arc: 112.5°
- Signal colour: Green
- Wide input voltage: 100–240 VAC
- DC output: 12–24 VDC
Product specifications
- Product SKU: JN-NAV-008S-S-S
- Power consumption: 8 W
- Input voltage: 100~240 VAC
- Output voltage: 12-24 VDC
- IP rating: IP56
- Certifications: CCS approval (suitable for vessels ≥50 m)
- Housing colour: Black
- Housing material: PA+GF housing, PC lampshade, stainless steel lens hood
- Socket / Base type: 4-hole mounting (Φ10~Φ12 cable entry)
- Visibility range: 3 NM
- Level arc: 112.5°
- Signal color: White
- LED type: SMD
- LED driver: Constant current
- Working temperature range: -25°C to +55°C
- Warranty period: 3 years
Packaging & Shipping
- Product dimensions (mm): 215 x 215 x 215
- Fixture dimensions (mm): H 215 x W 215 x L 285
- Net weight: 1.5 kg
- Export carton dimensions (mm): 300 x 250 x 250
- Products per carton: 1
- Export carton gross weight: 3 kg
Additional information
- IMPA Code: 371121
- Power (W): 8
- Voltage: 100~240 VAC
- IP rating: IP56
- LED type: SMD
- Certifications: CCS approval
- Warranty: 3 years
Technical specifications
- SKU: JN-NAV-008S-S-S
- Power consumption: 8 W
- Input voltage: 100~240 VAC
- Output voltage: 12-24 VDC
- LED driver: Constant current
- LED type: SMD
- IP rating: IP56
- Certifications: CCS approval (suitable for vessels ≥50 m)
- Visibility: 3 NM
- Level arc: 112.5°
- Signal colour: Green
- Housing: PA+GF with PC lampshade and stainless steel lens hood
- Mounting / base: 4-hole mounting (Φ10~Φ12 cable entry)
- Working temperature: -25°C to +55°C
- Warranty: 3 years
- Dimensions (fixture): 215 x 215 x 215 mm
- Net weight: 1.5 kg
