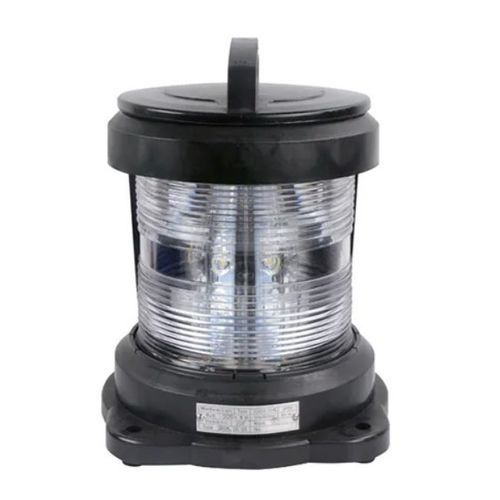

Ship navigation light JN-NAV-008S-MH-S

LEDwhitebase-mounted

Description
Single-lens LED starboard navigation light suitable for all vessels ≥50 m in length, model JN-NAV-008S-MH-S. Intended for fixed mounting as a navigation signal light with a 112.5° level arc and a nominal visibility of 3 NM.

Features

• CCS approved for vessels ≥50 m
• Signal colour: White
• Visibility range: 3 NM
• Level arc: 112.5°
• Operating temperature range: -25°C to +55°C

Product Specifications
Product SKU: JN-NAV-008S-MH-S
Power consumption: 8 W
Input voltage: 100~240 VAC
Output voltage: 12-24 VDC
LED driver: Constant current
IP rating: IP56
Certifications: CCS approval
Housing colour: Black
Housing material: PA+GF housing, PC lampshade, stainless steel lens hood
Socket / base type: 4 hole mounting (Φ10~Φ12 cable entry)
Warranty period: 3 years
IMPA code: 371121
Visibility range (NM): 3 NM
Level arc: 112.5°
Particulars: CCS approved for vessels ≥50 m, IP56 rated
Working temperature range: -25°C to +55°C

Packaging & Shipping
Product dimensions (mm): 215 x 215 x 215
Net weight (kg): 1.5
Export carton dimensions (mm): 300 x 250 x 250
Products per carton: 1
Export carton gross weight (kg): 3
Fixture height (mm): 215
Fixture width (mm): 215
Fixture length (mm): 285

Technical specifications

• Power: 8 W
• Input voltage: 100~240 VAC
• Output voltage: 12-24 VDC
• LED type: SMD
• LED driver: Constant current
• IP rating: IP56
• Operating temperature: -25°C to +55°C
• Visibility range: 3 NM
• Level arc: 112.5°
• Signal colour: Green
• Housing material: PA+GF, PC lampshade, stainless steel lens hood
• Housing colour: Black
• Product dimensions (mm): 215 x 215 x 215
• Net weight: 1.5 kg
• Warranty: 3 years
• IMPA code: 371121
• Socket / cable entry: 4 hole mounting (Φ10~Φ12 cable entry)
