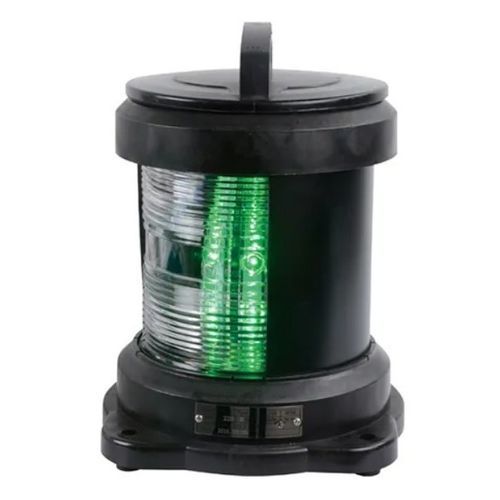

Ship navigation light JN-NAV-008S-SB-S

LEDgreenbase-mounted

Short description
Single-lens LED Starboard Navigation Light JN-NAV-008S-SB-S for all vessels ≥50 m in length. Green signal, 8 W power, CCS certified for vessels ≥50 m.

Features

• CCS approved for vessels ≥50 m in length
• IP56 rated
• Visibility range: 3 NM
• Signal colour: Green
• Constant current LED driver
• Operating temperature range: -25°C to +55°C

Product Specifications
Product SKU: JN-NAV-008S-SB-S
Power Consumption: 8 W
Input Voltage: 100~240 VAC
IP Rating: IP56
Certifications: CCS approval
Housing Colour: Black
Housing Material: PA+GF housing, PC lampshade, Stainless steel lens hood
Socket/Base Type: 4 hole mounting (Φ10~Φ12 cable entry)
Warranty Period (Years): 3
IMPA Code: 371121
Visibility Range (NM): 3 NM
Level Arc: 112.5°
Signal Color: Green
Output Voltage: 12-24 VDC
LED Driver: Constant Current
Particulars: CCS approved for vessels ≥50 m, IP56 rated
Working Temperature Range: -25°C to +55°C

Packaging & Shipping
Product Dimensions (mm): 215x215x215
Net Weight (kg): 1.5 kg
Export Carton Dimensions (mm): 300x250x250
Products per Carton: 1
Export Carton Gross Weight (kg): 3 kg
Fixture Height (mm): 215
Fixture Width (mm): 215
Fixture Length (mm): 285

Technical specifications

• Power: 8 W
• Voltage: 100~240 VAC (input)
• Output Voltage: 12-24 VDC
• IP Rating: IP56
• LED Type: SMD
• Certifications: CCS approval
• Housing Colour: Black
• Housing Material: PA+GF housing; PC lampshade; Stainless steel lens hood
• Mounting: 4 hole mounting (Φ10~Φ12 cable entry)
• Visibility: 3 NM
• Level Arc: 112.5°
• Signal Colour: Green
• LED Driver: Constant Current
• Warranty: 3 years
• Operating Temperature: -25°C to +55°C
• Dimensions (fixture): 215 x 215 x 285 mm (H x W x L where provided)
• Net Weight: 1.5 kg
