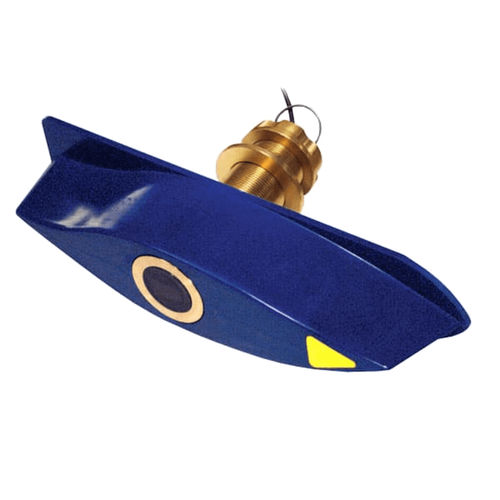

Temperature sensor B122A

depthacousticfor boat

The B122 is a long-stemmed transducer designed for use in thick-hulled, wooden boats or vessels with a steep deadrise. The included high-performance fairing vertically orients the beam for strong return echoes, resulting in optimal performance even at higher speeds. And being a retractable design, the insert can be removed for servicing or storage. All that is needed to receive depth and temperature data is a single cable run to a compatible instrument or display. Depth and temperature 100 W 200 kHz frequency most common marine instrument systems For thick-hulled or steep-deadrise vessel Can install as a low-profile mount with adapter ring Retractable insert in a bronze housing only Also available in NMEA 0183 or NMEA 2000® versions Power Rating: 100 W Max Deadrise Angle: 28° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 9 m (30') Hole Size: 51 mm (2"), 57 mm (2-1/4") installation with adapter ring Acoustic Window: Urethane Common Use: Cruising/Racing Sailboats, Leisure/Yachting Conventional Beam: 14° Data Rate: 1X per second Max Deadrise: Up to 28° with fairing Max Depth: Up to 180 m (590')—Broadband Mounting Style: Thru-Hull with Fairing Retractable housing: Yes Single or Dual Frequency: Conventional Single Frequency Tilted Element: No Weight: 3.9 kg (8.7 lb.)
