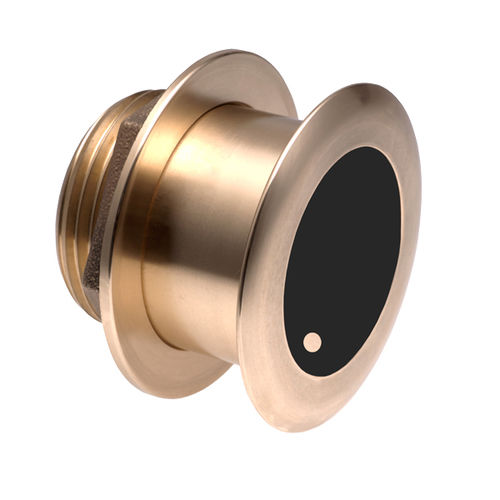

Depth transducer B164
water temperatureacousticfor boat

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, water temperature, acoustic
Application domain
for boat
Other characteristics
ultrasonic, tilted through-hull


Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element™ transducer is perfect for fast, trailered vessels that cannot accommodate a high-performance fairing. The flush-mounted, bronze housing protrudes less than 6.35 mm (1/4") outside your hull and can sit on trailer rollers and bunks. The ceramic array is tilted inside the housing, providing the perfect vertical beam with maximum energy on what is directly below the boat. Available in three Tilted Element models: Fixed 20° tilted version for 16° to 24° hull deadrise Fixed 12° tilted version for 8° to 15° hull deadrise Fixed 0° tilted version for 0° to 7° hull deadrise Features: Depth and fast-response water-temperature sensor 1 kW power for performance to 500 m (1,640'): -50 kHz with a wide 22° beam -200 kHz with a 6° beam Interfaces to any 600 W or 1 kW echosounder Engineered for center-console and trailered boats Low-profile protrusion is less than 6.35 mm (0.25") outside your hull No effect on boat's running performance Bronze housing Also available in a stainless steel (SS164) for use on all hull materials Exclusive Xducer ID® technology Specifications: Weight: 2.7 kg (6 lb.) Recommended Boat Length: Up to 11 m (35') Hull Material: Fiberglass or wood Hull Deadrise: Up to 24° Acoustic Window: Urethane Hole Diameter: 95 mm or 3-3/4"
