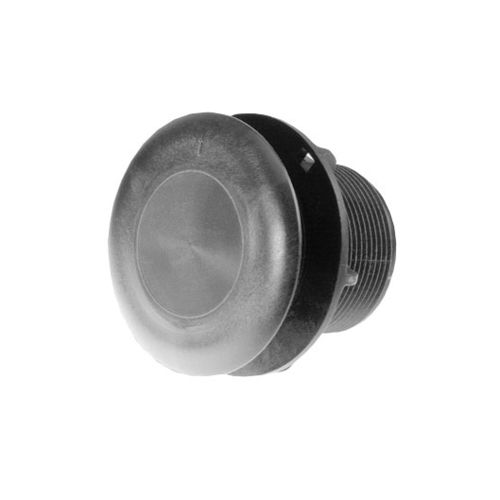

Depth transducer P7
water temperatureacousticfor boat

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, water temperature, acoustic
Application domain
for boat
Other characteristics
ultrasonic, through-hull


The plastic P7 is part of our Shorty™ Series, designed for boats with limited headroom. Compared with the P19, the P7 housing is 28 mm (1.10") shorter for mounting in tight spots. Its low-profile is nearly flush and minimizes drag with only 5 mm (3/16") extending outside of the hull, eliminating turbulence for exceptional high-speed echo sounder performance. Features: Depth only or Depth and temperature 350 W 235 kHz with an 11° beam for depth performance to 176 m (600') Can be installed in tight spaces with only 153 mm (6") of headroom Total height of transducer is only 71 mm (2.8") Low-profile housing only protrudes from hull 5 mm (3/16") Right-angle cable exit saves space and protects transducer if stepped on Plastic housing is ABYC H-27 compliant Available in a plastic housing only Specifications: Weight: 0.5 kg (1.1 lb.) Hull Material: Fiberglass or metal Hull Deadrise: Best performance through 7°. Can accommodate up to 12°. Acoustic Window: Urethane Hole Diameter: 51 mm or 2" Sensor Cable Length: 10 m (33") standard
