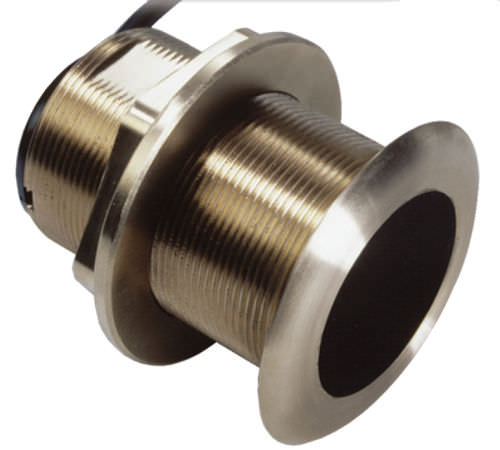

Depth transducer B60
water temperatureacousticfor boats

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Characteristics

Measured value
depth, water temperature, acoustic
Application domain
for boats
Applications
fishfinder
Other characteristics
ultrasonic, tilted through-hull

Description

The B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. The transducer is installed almost flush to the hull and the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth readings. Available in two Tilted Element models: Fixed 20° tilted version for 16° to 24° hull deadrise Fixed 12° tilted version for 8° to 15° hull deadrise Features: Depth and water temperature 600 W Dual-frequency element: -50 kHz with a wide 45° beamwidth for depth performance to 353 m (1,200') -200 kHz with a 12° beamwidth for depth performance to 206 m (700') Perfect for center-console or trailered boats Low-profile protrusion extends only 5 mm (3/16") outside the hull No effect on your boat’s running performance Bronze housing Also available in a stainless steel housing (SS60) for use with all hull materials Specifications: Weight: 1.4 kg (3 lb.) Recommended Boat Length: Up to 8 m (25') Hull Material: Fiberglass or wood Hull Deadrise: Up to 24° Acoustic Window: Urethane Hole Diameter: 60 mm (2-3/8")
