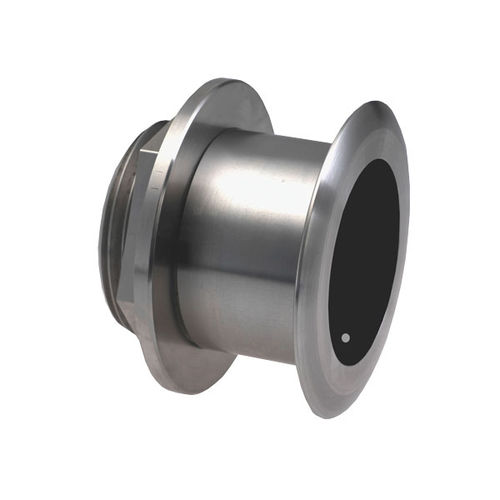

Depth transducer SS164
water temperatureacousticfor boat

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, water temperature, acoustic
Application domain
for boat
Other characteristics
ultrasonic, tilted through-hull


Step up to a 1 kW—without a fairing! Airmar’s innovative Tilted Element™ technology has been taken to a higher power. This 1 kW, flush-mount transducer is perfect for fast, trailered, tournament and sport-fishing vessels that cannot accommodate a high-performance fairing. The flush-mounted, stainless steel housing protrudes less than 6.35 mm (1/4") outside your hull, so it can sit on trailer rollers and bunks. The ceramic arrays are tilted inside the housing, providing the perfect vertical beam with maximum energy on what is directly below the boat. Available in three Tilted Element models: Fixed 20° tilted version for 16° to 24° hull deadrise Fixed 12° tilted version for 8° to 15° hull deadrise Fixed 0° tilted version for 0° to 7° hull deadrise Features: Depth and fast-response water-temperature sensor 1 kW power for depth performance to 500 m (1,640'): -50 kHz with a wide 22° beam -200 kHz with a 6° beam Interfaces to any 600 W or 1 kW echosounder Engineered for center-console and trailered boats Low-profile design protrudes less than 6.35 mm (1/4") outside your hull No effect on boat’s running performance Stainless steel housing for use on all hull materials Also available in a bronze housing (B164) for use on a fiberglass or wood hull Exclusive Xducer ID® technology Specifications: Weight: 2.7 kg (6 lb.) Recommended Boat Length: Up to 11 m (35') Hull Material: Compatible with all hull materials Hull Deadrise: Up to 24° Acoustic Window: Urethane Hole Diameter: 95 mm or 3-3/4" (fiberglass or wood hull), 105 mm or 4-1/8" (metal hull)
