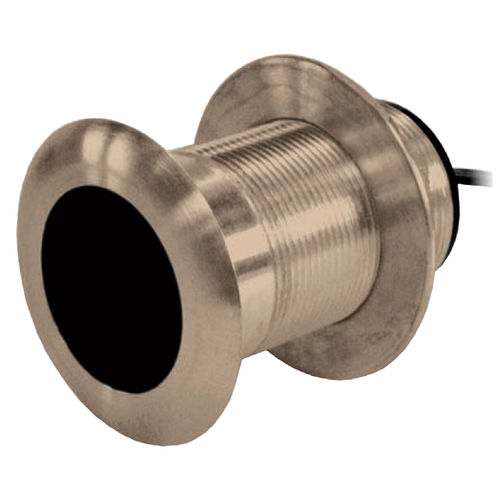

Depth transducer B117
water temperatureacousticfor boat

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, water temperature, acoustic
Application domain
for boat
Other characteristics
ultrasonic, through-hull


The B117 features a 50/200 kHz, dual-frequency, single, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside of the hulll. Features: Depth only or depth and temperature 600 W Dual-frequency element: -50 kHz with a wide 45° beamwidth for performance to 353 m (1,200') -200 kHz with a 12° beamwidth for performance to 206 m (700') Right-angle cable exit saves space and protects transducer if stepped on Included rubber washer allows tightening of the hull nut to irregular hull surfaces Low-profile, bronze housing has minimal drag Plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials and deadrise angles Specifications: Weight: 0.9 kg (2.0 lb.) Recommended Boat Length: Up to 8 m (25') Hull Material: Fiberglass or wood Hull Deadrise: Best performance through 7°. Can accommodate up to a 12°. Acoustic Window: Urethane Hole Diameter: 51 mm (2")
