Depth transducer P319
water temperatureacousticfor boat

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, water temperature, acoustic
Application domain
for boat
Other characteristics
ultrasonic, through-hull

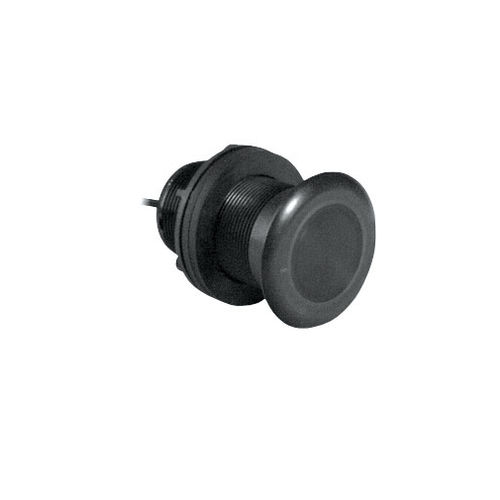

The P319 features a 50/200 kHz, dual-frequency, single, ceramic element in a low-profile, plastic housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside of the hull. Features: Depth only or depth and temperature 600 W Dual-frequency element: -50 kHz with a wide 45° beamwidth for depth performance to 353 m (1,200') -200 kHz with a 12° beamwidth for depth performance to 206 m (700') Right-angle cable exit saves space and protects transducer if stepped on Included rubber washer allows tightening of the hull nut to irregular hull surfaces Low-profile housing has minimum drag Plastic housing is ABYC H-27 compliant Bronze (B117) and stainless steel (SS60) models are also available to accommodate all hull materials Specifications: Weight: 0.6 kg (1.3 lb.) Recommended Boat Length: Up to 8 m (25') Hull Material: Fiberglass or metal Hull Deadrise: Best performance through 7°. Can accommodate up to 12°. Acoustic Window: Urethane Hole Diameter: 51 mm (2")
