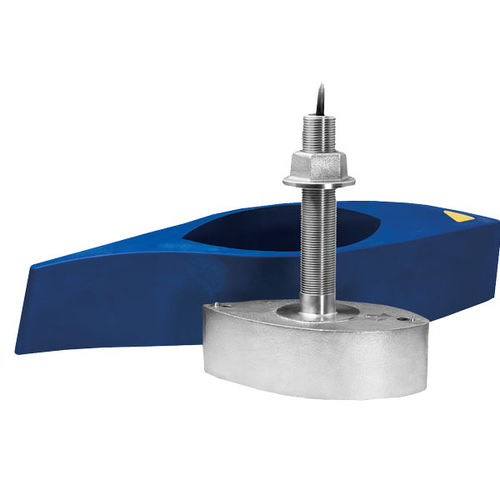

Depth transducer SS260
water temperatureacousticfor boat

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, water temperature, acoustic
Application domain
for boat
Other characteristics
ultrasonic, through-hull


The performance of Airmar’s "1 kW 260 family" of transducers is legendary. The combination of power and sensitivity has made this the high-performing transducer of choice with conventional fishfinders. Operating at 50 and 200 kHz, the narrow, 6° beam at 200 kHz provides excellent target resolution and crisp images of fish holding tight to wrecks and reefs. The 50 kHz is excellent at deep-water detection, and the wide, 19° beam yields broad coverage under the boat. SS260 features a stainless steel housing which is compatible with all hull materials. Installed with the included, custom-fitting, high-performance fairing, the SS260 gives excellent results at speeds up to 30 knots (34 MPH). Features: Depth and fast-response water-temperature sensor 1 kW Dual-frequency element: -50 kHz with a 19° beamwidth for depth performance to 762 m (2,500') -200 kHz with a 6° beamwidth for depth performance to 294 m (1,000') Available with a diplexer for single-transmission-line fishfinders and without a diplexer for dual-transmission-line fishfinders Stainless steel housing with high-performance fairing for optimal performance speed Also available in transom (TM260), in-hull (M260), and bronze thru-hull (B260) versions. Exclusive Xducer ID® technology Specifications: Weight: 7.3 kg (16 lb.) Recommended Boat Length: Over 9 m (30') Hull Material: Compatible with all hull materials Hull Deadrise: Up to 20° with fairing Acoustic Window: Urethane Hole Diameter: -Fiberglass or wood hull—33 mm or 1-5/16" -Metal hull—35 mm or 1-3/8" Includes: High-performance fairing and mounting hardware
