E3 (E-cubed) is a propeller that features innovative technical solutions in its shell, which are combined with the use of materials and treatments so far only applied in advanced technology fields. These innovations guarantee an absolutely superior resistance to mechanical shocks and galvanic corrosion, by no means comparable to the performances of common feathering, folding or solid blade propellers.
Thorough studies and tests have been carried out over several years for the development of the project, allowing to obtain an extremely reliable product in a particularly slim body.
All this guarantees a long endurance propeller with a wide range of applications, making E3 suitable for all race and cruise sailing boats.
The adopted solutions are in line with the latest sailing trends, always oriented towards innovative materials and technologies capable of exalting modern boats' performances.
The feathering 3 blades propeller E3 (E-cubed) is available either for shaft-drive and S-Drive.
E3 is built completely with high-strength and high corrosion resistance stainless steels and has a micrometric pitch-setting device allowing to set the most appropriate pitch from the outside.
E3 doesn't require disassemblage of its parts in order to be installed or removed and doesn't require any hub puller, therefore it can be installed in few minutes easily even underwater.
|
|
Bruntons Custom Division was set up to satisfy the growing demand for solutions to increasingly difficult propulsion problems. This specialist division has succeeded in providing clients around the world with the very latest technological answers to seemingly insoluble situations.
The company is able to draw on a full range of specialists who are all employed within the Bruntons Group. Not just naval architects and designers but also metallurgists and the highly experienced craftsmen who actually build the propellers and sterngear.
As yachts and commercial craft become more advanced in both design, and the materials from which they are constructed, it is not surprising that the likelihood of being able to get a propeller 'off the shelf' is proving more and more difficult. By working with clients naval architects early on in a vessels design stage, we are able to develop exactly the right propeller and sterngear for any craft.
|
|
|
|
|
|
|
Varifold Propellers have taken the market by storm. Regularly fitted by such notable yacht building names as Baltic, Swan, Wally, Moody and Oyster, the complete range of Varifolds has a model for cruiser racing and racing yachts of every size. Varifold is revolutionary in design and brings a revolution to the yachts they are fitted to. Radical reductions in noise and vibration and excellent performance under engine, both ahead and astern, are the result of the propellers unique design. Varifolds have proper helical pitch distribution, including pitch reduction towards the blade tip. This pitch reduction 'unloads' the blade tips and, combined with the skewed blades, greatly reduces noisy pressure pulses against a yachts hull. While some other folding propellers have a helical pitch shape, few have proper sections or pitch distribution. None, put all these requirements into a complete package, except Varifold.
- Diameter 432mm to 813mm or 16" to 32"
- For engines rated to 350HP
- Available for shafts & saildrives
- Latest blade design incorporates high skew and cambered blades for smooth operation
- Pitch reduction at the tip to reduce pressure pulses on the hull
|
|
|
|
|
|
|
Varifold Propellers have taken the market by storm. Regularly fitted by such notable yacht building names as Baltic, Swan, Wally, Moody and Oyster, the complete range of Varifolds has a model for cruiser racing and racing yachts of every size. Varifold is revolutionary in design and brings a revolution to the yachts they are fitted to. Radical reductions in noise and vibration and excellent performance under engine, both ahead and astern, are the result of the propellers unique design. Varifolds have proper helical pitch distribution, including pitch reduction towards the blade tip. This pitch reduction 'unloads' the blade tips and, combined with the skewed blades, greatly reduces noisy pressure pulses against a yachts hull. While some other folding propellers have a helical pitch shape, few have proper sections or pitch distribution. None, put all these requirements into a complete package, except Varifold.
- Diameters up to 1,016 mm or 40"
- For engines rated to 750HP
- Designed for high power sailboats,
to minimise noise & vibration
- Incorporates the latest low noise
blade design
- High blade area minimises
cavitation and thrust breakdown
at full power giving improved
efficiency and speed
|
|
|
|
|
|
|
Varifold Propellers have taken the market by storm. Regularly fitted by such notable yacht building names as Baltic, Swan, Wally, Moody and Oyster, the complete range of Varifolds has a model for cruiser racing and racing yachts of every size. Varifold is revolutionary in design and brings a revolution to the yachts they are fitted to. Radical reductions in noise and vibration and excellent performance under engine, both ahead and astern, are the result of the propellers unique design. Varifolds have proper helical pitch distribution, including pitch reduction towards the blade tip. This pitch reduction 'unloads' the blade tips and, combined with the skewed blades, greatly reduces noisy pressure pulses against a yachts hull. While some other folding propellers have a helical pitch shape, few have proper sections or pitch distribution. None, put all these requirements into a complete package, except Varifold.
- Diameter 305mm to 432mm or 12" to 17"
- For engines rated to 50hp
- Available for shafts & saildrives
- Blades fold completely together for minimum drag
- Modern blade design with substantial blade area for smooth running and minimum noise & vibration
- Rubber bump stops minimise blade opening impact
|
|
|
|
|
|
|
Autoprop is unique! This remarkable propeller can be found on thousands of sailing yachts the world over! Fitted to all the BT Challenge yachts, and tested in the most arduous conditions, Autoprops benefits for cruising yachts are unmatched by any other product. Considerably reduced drag can be expected from most feathering propellers but unlike ' the others' Autoprops exclusive design enables her shaped blades to automatically find the optimum pitch when motoring or motor sailing, ensuring excellent performance both ahead and astern, with virtually no 'prop walk'.
Faster motoring speeds for the same revs; better economy using lower revs at a yachts normal cruising speed; as much as one knot increase in sailing speed and a huge advantage when motor sailing, unachievable by any other feathering propeller: -
Autoprop automatically adopts the most efficient pitch setting, taking into account the driving force of the sails. The result is increased speed at lower revs, giving longer range and more comfortable cruising.
Too good to be true? There is lots more to be discovered on this web site about this great propeller range, which offers two and three blade versions plus one suitable for sail drives, and Autoprop sizes will accomodate any engine up to 350hp. To find out more follow the links below to download our brochure,fill in our enquiry form, view Autoprops own site or contact us directly using the details on our contact page.
|
|
An innovative new propeller for sailing yachts ...
The Kiwiprop™ is a unique cost effective feathering propeller that eliminates gears, aligns the blades with the streamlines not the shaft, minimises corrosion potential from the lightweight composite blades and offers users easy variable pitch adjustment. In the Kiwiprop™ the individual blades are always free to "weather vane" in the actual water flow, to a minimum drag position so don't cause autorotation.
This modern light weight three bladed feathering propeller has proved much smoother and quieter in operation than equivalent two bladed units and offers the additional benefits of variable pitch, fully lubricated, minimal corrosion potential and the full reverse thrust.
|
|
All Clements' high performance propellers are manufactured from high integrity castings and a full range of designs are available with a three, four or five blade configuration suitable for all types of semi and deep V planing hulls. Sizes range up to 1.2 metres in diameter, in accordance with ISO standard 484/2 and, if required, to meet the demands of classification society inspection.
|
|
|
|
|
|
|
A fixed propeller is a sure choice when you know which propeller is the optimum propeller for your application, and when there are no substantial variations in the speed and payload of your boat. Most pleasure boats, some sailboats and many professional vessels are equipped with fixed propellers. These propellers usually range from two-blade to five-blade depending on individual needs. West Mekan calculates and produces fixed propellers of diameters up to 1500mm, and also distributes fixed propellers from a range of manufacturers. Fixed propellers are suitable for speeds up to approximately 40 knots.
Modern motors, with high RPM rates that make the boat capable of reaching great speeds, can make it difficult to find a suitable standard fixed propeller. This because it is not an easy task to find the correct main parameters such as diameter of the propeller, design pitch, pitch distribution and blade area may with this type of propeller. A specially designed fixed propeller can therefore very well prove to be your best option. But even if the fixed propeller is specially designed, the result may not be satisfactory. Our Type FR propeller is a better and more secure choice in such cases.
|
|
|
External pitch adjustment (no tools required for pitch adjustment), increased motor efficiency, very low drag under sail, legendary reverse, and great reliability.
|
|
"Overdrive" function
The 3-blade Gori folding propeller's "overdrive" function adds a new dimension to sailing under power. The helmsman can choose the propeller pitch and profile in the water while sailing forward, by regulating the yacht's shift and throttle control. Without the use of vulnerable hydraulics or complicated mechanical devices.
The "overdrive" is used when motorsailing in fair weather or when using the engine under sail. The "overdrive" gives the same speed at lower rpms. The result is less engine noise, less vibration and better fuel economy.
The function is simple. E.g. when changing from "overdrive" to normal ahead the shift and throttle control is set in neutral, which allows the propeller to fold. Then the shift and throttle control is set in forward again.
The propeller in itself adds a new dimension to sailing under power. Qualities that are unique to the 3-blade Gori folding propeller.
|
|
|
Asuitable for all Sail-Drive units, the patented Max-Prop Propeller Rubber Bushiong is the only prop on the market who has been developed on purpose to grant any protection against any solicitation dynamic on the cinematism of the transmission of the movement.
|
|
|
Very low drag, proven performance, unequalled reliability, outstanding reverse and internal adjustable pitch.
|
|
|
Very low drag, proven performance, unequalled reliability, outstanding reverse and internal adjustable pitch.
|
|
|
|
|
|
|
The Type FR is a fixed adjustable propeller, and is the best choice when you do not know which propeller is the best for your boat, when a suitable fixed propeller is hard to find, or when there are special requirements to the propeller.
The Type FR propeller is easily adjusted to optimum pitch using two wrenches. Adjusting the propeller to optimum pitch ensures a correct load on the motor, while also providing maximum power and fuel efficiency. In addition, the cost of a Type FR propeller is low compared to buying several fixed propellers in order to find the best one for your application. The Type FR propeller has approximately the same efficiency as a fixed propeller, in some cases even exceeding the fixed propeller's efficiency. When adjusted, it is used in the same way as a fixed propeller.
Fixed adjustable propellers are used for all types of boats, and usually have three or four blades. West Mekan calculates and produces these propellers in diameters of up to 1500mm, for speeds up to approximately 40 knots.
Fixed adjustable propellers with more or fewer blades can be specially designed.
|
|
SCHOTTEL controllable-pitch propellers (SCP), manufactured by SCHOTTEL-Schiffsmaschinen GmbH (formerly WPM), are propulsion systems that can be used with almost any type of vessel. The power spectrum ranges from 600 kW to 30,000 kW, with propeller sizes varying between approximately 1.5 to 8.0 metres.
Advanced calculation methods allow the controllable-pitch propeller systems to be optimally adapted to the vessel’s hull form, thereby maximizing efficiency and minimizing noise generation.
The simple structure of the SCP guarantees a high level of user-friendliness, and the robust design keeps maintenance requirements to a minimum and ensures it a long service life.
|
|
|
|
|
|
|
The Type FR is a fixed adjustable propeller, and is the best choice when you do not know which propeller is the best for your boat, when a suitable fixed propeller is hard to find, or when there are special requirements to the propeller.
The Type FR propeller is easily adjusted to optimum pitch using two wrenches. Adjusting the propeller to optimum pitch ensures a correct load on the motor, while also providing maximum power and fuel efficiency. In addition, the cost of a Type FR propeller is low compared to buying several fixed propellers in order to find the best one for your application. The Type FR propeller has approximately the same efficiency as a fixed propeller, in some cases even exceeding the fixed propeller's efficiency. When adjusted, it is used in the same way as a fixed propeller.
Fixed adjustable propellers are used for all types of boats, and usually have three or four blades. West Mekan calculates and produces these propellers in diameters of up to 1500mm, for speeds up to approximately 40 knots.
Fixed adjustable propellers with more or fewer blades can be specially designed.
|
|
All Clements' high performance propellers are manufactured from high integrity castings and a full range of designs are available with a three, four or five blade configuration suitable for all types of semi and deep V planing hulls. Sizes range up to 1.2 metres in diameter, in accordance with ISO standard 484/2 and, if required, to meet the demands of classification society inspection.
|
|
All Clements' high performance propellers are manufactured from high integrity castings and a full range of designs are available with a three, four or five blade configuration suitable for all types of semi and deep V planing hulls. Sizes range up to 1.2 metres in diameter, in accordance with ISO standard 484/2 and, if required, to meet the demands of classification society inspection.
|
|
|
Interchangeable with Flo-Torq & Vortex System SOLAS High Performance / Rubber Hub Aluminum Propellers
|
|
Interchangeable with Flo-Torq & Vortex System SOLAS High Performance / Rubber Hub
Stainless Steel Propellers
|
|
|
Interchangeable with Flo-Torq & Vortex System SOLAS High Performance / Rubber Hub Aluminum Propellers / 3 Blade
|
|
|
Interchangeable with Flo-Torq & Vortex System SOLAS High Performance / Rubber Hub Stainless Steel Propellers / 3 Blade
|
|
|
Interchangeable with Flo-Torq & Vortex System SOLAS High Performance / Rubber Hub Aluminum Propellers / 4 Blade
|
|
|
Interchangeable with Flo-Torq & Vortex System SOLAS High Performance / Rubber Hub Stainless Steel Propellers / 4 Blade
|
|
|

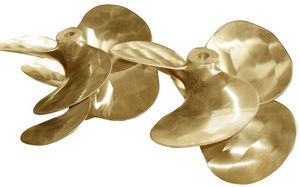

complete range of 2-, 3- and 4-blade bronze propellers for inboard installations makes the choise easy. All propellers are available as Right Hand rotating propellers and some 4-blades also as Left Hand rotating propellers.
|
|
A range of controllable pitch propellers is available with diameters up to approximately 8500 mm and rated for engine outputs of up to 30 000 kW.
MAN Diesel's advanced propeller blade design and calculation methods exploit the latest hydrodynamic theories and tank test results to create a propeller design that ensures maximum efficiency while maintaining low noise and low vibration characteristics.
Complete propulsion packages can be tailored to meet specific requirements by using these propellers in association with MAN Diesel two-stroke or four-stroke diesel engines and, where applications demand, reduction gearboxes
|
|
|

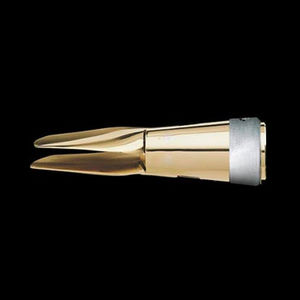

The 2-blade Gori folding propeller is for sailing yachts fitted with engines up to approximately 60 HP (44 KW). It is available in 7 diameters from 11.5" to 18" for shaft installation and Sail-drive. RH and LH rotation.
|
|
The 3-blade Gori folding propeller marks a technological and functional leap forward in the development of propellers for sailboats. It is now possible for sailboats and motorsailers to gain the folding propeller's speed advantages under sail, combined with the fixed propeller's thrust capability when motoring.
The 3-blade Gori folding propeller was introduced on the market in 1994 and won the DAME award and HISWA award the same year, as the best new marine product.
|
|
|
|
