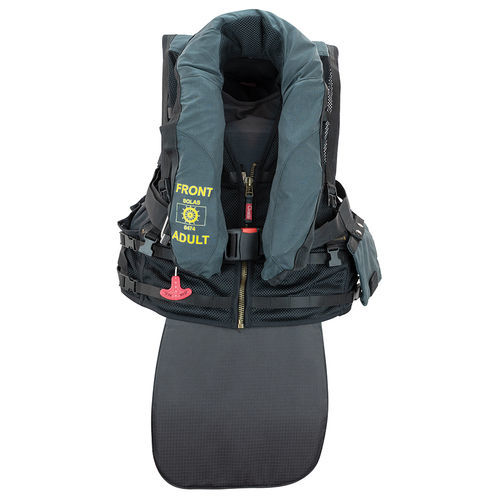

Inflatable life jacket ABF 275

Hammar Hydrostaticmanual275 N

Description
Inflatable floating ballistic vest with integrated inflatable lifejacket providing buoyancy. Designed to accept additional ballistic plates. The inflatable module can be used together with the ballistic protection or as a stand‑alone flotation device.

Types of activation

• Automatic activation: On falling into the sea the unit is submerged and automatically inflates the flotation chamber within 5 seconds. Automatic activation is available with the UML MK5 saline actuator (hydrosoluble pill) or with the Hammar MA1 hydrostatic actuator (activation by immersion pressure at a depth of at least 10 cm).
• Manual activation: Activated by pulling the dedicated lever. Supplied with the UML MICROMANUAL manual actuator and can be used in manual mode only.

Sizes / Variants

• Available sizes: M, L, XL
• Variant SKUs: 04055/M (M), 04055/L (L), 04055/XL (XL)
• Availability: product currently out of stock for the shown variants.

Certifications and pictograms

• SOLAS M.E.D.
• Pictograms on page: SOLAS M.E.D., ISO 12402-2 (buoyancy class 275)

Technical characteristics / specifications

• Model: ABF 275
• Buoyancy class: 275
• Activation: Automatic (also available in manual version)
• Certification: SOLAS M.E.D.
• Supported weight: > 40 kg
• Service interval: 12 months
• Actuator type: UML / HR (e.g. UML MK5, Hammar MA1)
• CO2 cylinder: 60 g
• Predisposition for additional ballistic plates
• Main SKU / item number: 04055 (variants: 04055/M, 04055/L, 04055/XL)
• Product status on page: currently out of stock / unavailable
