Inflatable life jacket MODULO 275 GDF

Hammar Hydrostaticmanual310 N

Summary

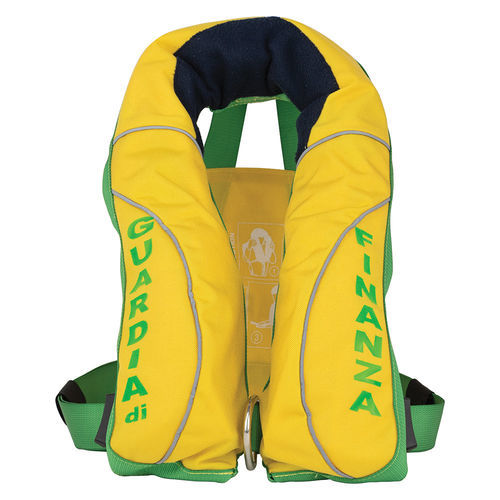

Inflatable lifejacket for adults – SOLAS M.E.D. – MODULO 275 GDF – 310 N – GDF cover.

Description
Inflatable lifejacket designed for adult users and SOLAS M.E.D. certified. Developed for naval units of the Guardia di Finanza. Features a double-chamber buoyancy bladder, high-strength fabric cover and integrated Buddy System. Available in configurations with Double Automatic Actuator (DAA), Double Automatic and Manual (DAAM) or Single Automatic Actuator (SAA).

Activation types

• Automatic: On immersion after a man-overboard event the actuator triggers inflation of the buoyancy chamber within 5 seconds. Automatic activation can be provided by the saline UML MK5 (dissolving a water-soluble tablet) or the hydrostatic Hammar MA1 (activation at immersion depth ≥ 10 cm).
• Manual: Activated by pulling the dedicated manual lever. Supplied with the UML MICROMANUAL actuator and operates only by manual activation.

Technical specifications

• Model: MODULO 275 GDF
• Intended use: Inflatable lifejacket for adults
• Certification: SOLAS M.E.D.
• Declared buoyancy: 310 N
• Buoyancy chamber: double-chamber
• Cover: high-strength fabric (GDF cover)
• Safety system: integrated Buddy System
• Available actuator configurations: DAA, DAAM, SAA
• Supported actuators: UML MK5 (saline); Hammar MA1 (hydrostatic); UML MICROMANUAL (manual)
• CO2 cylinder: 2 × 60 g
• Size: Adult
• Recommended service interval: 12 months
• Weight (indicative): 1.8 kg
• SKU / Reference: 02130/GDF-A (variants: 02130/GDF-A, 02130/GDF-M)
