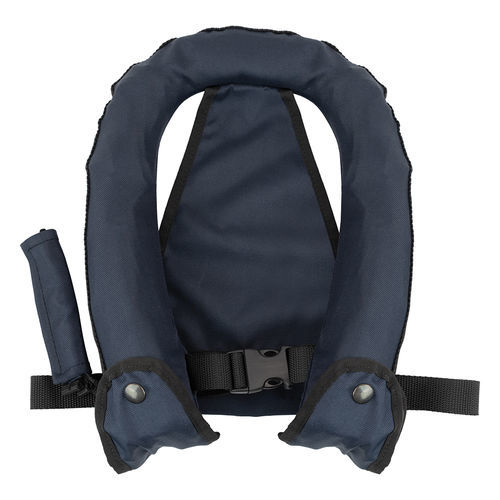

Inflatable life jacket SUB-A

Hammar Hydrostaticmanual100 N

Description
INFLATABLE LIFEJACKET SINGLE-CHAMBER – SUB-A 100N MMI

Overview
Individual personal flotation device designed for special units of the Italian Navy. Variant 04011: two inflatable chambers with independent manual activation. Variant 04012: single inflatable chamber with manual activation.

Activation types

• Automatic activation: If a wearer falls into the water the unit is submerged and automatically inflates the buoyancy chamber within 5 seconds. Automatic activation is available with the UML MK5 salt-type initiator (dissolving water-soluble tablet) or with the Hammar MA1 hydrostatic initiator, which triggers from immersion pressure of at least 10 cm.
• Manual activation: Activated by pulling the dedicated lever. Supplied with the UML MICROMANUAL manual initiator and can be activated manually only.

Key data
Size: Adult
Activation: DAM
Real buoyancy: 100N
Service interval: 12 Months
Initiator type: UML/HR
CO2 cylinder: 24 g x 1

Technical specifications

• Model: SUB-A (variants illustrated: 04011 / 04012)
• Type: Single-chamber (04012) or two-chamber (04011) inflatable lifejacket
• Real buoyancy: 100N
• Size: Adult
• Activation: DAM (manual activation; automatic possible with compatible initiators)
• Compatible initiator types: UML/HR (examples: UML MK5 salt-type, Hammar MA1 hydrostatic, UML MICROMANUAL manual - supplied)
• CO2 cylinder: 24 g x 1
• Recommended inspection interval: 12 Months
