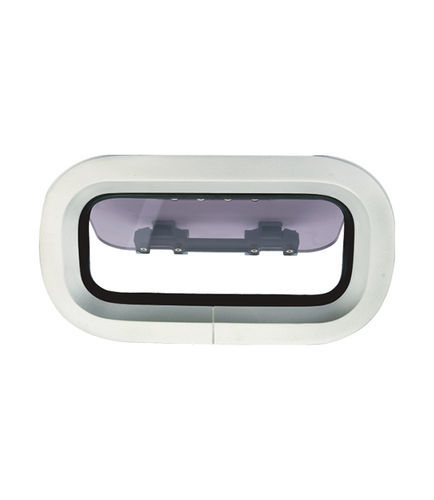

Rectangular portlight SFP1-369-05

for boatmarineopening

Product Overview
Standard rectangular portlight from the 05 Series for marine applications. Designed for deck or hull installation to provide daylight and optional ventilation; available in two model sizes to fit common cut-outs and deck thicknesses.

Key Features & Benefits

• Frame material: Aluminium alloy — durable marine-grade construction
• Surface treatment: Anodized — corrosion-resistant finish suitable for saltwater environments
• Glass material: Acrylic — lightweight, impact-resistant glazing
• Handle material: Nylon — ergonomic operation for opening models

Product Measurements
Frame Size: 14.5" x 7.6" (369 x 193 mm) for SFP1; 15.6" x 7.8" (397 x 197 mm) for SFP2
Cut-out Size: 13.7" x 6.7" (347 x 171 mm)
Height: 1.8" (42.5 mm)
Deck Thickness: 1.7" (44 mm)
Color: Silvery (SFP1) / Black (SFP2)

Standard Configurations
SFP1-369-05 | Frame Size: 14.5" x 7.6" (369 x 193 mm) | Cut-out: 13.7" x 6.7" (347 x 171 mm) | Height: 1.8" (42.5 mm) | Deck Thickness: 1.7" (44 mm) | Additional Thickness: 1.2" (31 mm) | Color: Silvery | Geometry: Oval
SFP2-369-05 | Frame Size: 15.6" x 7.8" (397 x 197 mm) | Cut-out: 13.7" x 6.7" (347 x 171 mm) | Height: 1.8" (42.5 mm) | Deck Thickness: 1.7" (44 mm) | Additional Thickness: 1.2" (31 mm) | Color: Black | Geometry: Oval

Dimensions
SFP1-369-05 / SFP2-369-05 — Refer to product measurements and standard configurations above for exact sizing.

Shipping Information
Unit Weight: 4.4 lbs (1.98 kg)
Selling Unit Size (L x W x H): 17.72" x 8.66" x 2.76" (45 x 22 x 7 cm)
Selling Unit Weight: 4.59 lbs (2.08 kg)
Master Carton Size (L x W x H): 18.50" x 9.45" x 6.69" (47 x 24 x 17 cm)
Master Carton Qty: 2 pcs
Master Carton Weight: 10.63 lbs (4.82 kg)
Master Carton Volume: 0.019 m³

Technical specifications

• Product name: Standard rectangular portlight - 05 Series
• Models: SFP1-369-05, SFP2-369-05
• Frame Size: SFP1: 14.5" x 7.6" (369 x 193 mm); SFP2: 15.6" x 7.8" (397 x 197 mm)
• Cut-out Size: 13.7" x 6.7" (347 x 171 mm)
• Height: 1.8" (42.5 mm)
• Deck Thickness: 1.7" (44 mm)
• Additional thickness / inner dimension: 1.2" (31 mm)
• Frame material: Aluminium Alloy
• Surface treatment: Anodized
• Glass material: Acrylic
• Handle material: Nylon
• Color options: Silvery (SFP1) and Black (SFP2)
• Geometry: Oval
• Unit weight: 4.4 lbs (1.98 kg)
• Selling unit dimensions: 17.72" x 8.66" x 2.76" (45 x 22 x 7 cm)
• Selling unit weight: 4.59 lbs (2.08 kg)
• Master carton: 2 pcs, 18.50" x 9.45" x 6.69" (47 x 24 x 17 cm), 10.63 lbs (4.82 kg), volume 0.019 m³
