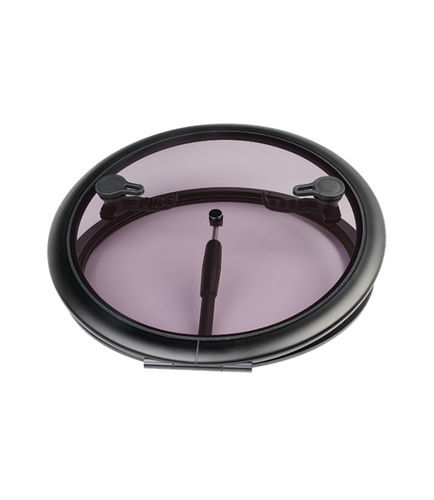

Boat deck hatch SFDH2-485-02

roundcircularflush

Product
Deck hatch SFDH2 series — marine deck hatch for boats, designed for flush installation on deck surfaces.

Key variables

• Frame Size: ∅19" (485mm)
• Cut-out Size: ∅16.5" (420mm)
• Height: 1.8" (42.5mm)
• Deck Thickness: 0.6" (15mm)
• Color: Black
• Model (example): SFDH2-485-02

Materials & features

• Frame material: Aluminium Alloy
• Surface treatment: Anodized
• Glass material: Acrylic
• Handle material: Nylon

Standard configurations
SFDH2-485-02 | ∅19" (485mm) | ∅16.5" (420mm) | 1.8" (42.5mm) | 0.6" (15mm) | Black
SFDH2-545-02 | ∅21.4" (545mm) | ∅18.9" (480mm) | 1.8" (42.5mm) | 0.6" (15mm) | Black
SFDH2-587-02 | ∅23.1" (587mm) | ∅20.5" (522mm) | 1.8" (42.5mm) | 0.6" (15mm) | Black

DIMENSIONS (models)
SFDH2-485-02; SFDH2-545-02; SFDH2-587-02

SHIPPING INFORMATION
SFDH2-485-02:
Unit Weight: 10.5 lbs (4.78 kg)
Selling Unit Size (L x W x H): 20.27" x 20.27" x 2.76" (51.5 x 51.5 x 7 cm)
Selling Unit Weight: 10.8 lbs (4.88 kg)
Master Carton Size (L x W x H): 21.06" x 21.06" x 6.69" (53.5 x 53.5 x 17 cm)
Master Carton Qty: 2 pcs
Master Carton Weight: 25.62 lbs (11.62 kg)
Master Carton Volume: 0.049 m³

SFDH2-545-02:
Unit Weight: 12.6 lbs (5.7 kg)
Selling Unit Size (L x W x H): 22.83" x 22.83" x 2.76" (58 x 58 x 7 cm)
Selling Unit Weight: 12.8 lbs (5.8 kg)
Master Carton Size (L x W x H): 23.62" x 23.62" x 6.69" (60 x 60 x 17 cm)
Master Carton Qty: 2 pcs
Master Carton Weight: 29.65 lbs (13.45 kg)
Master Carton Volume: 0.061 m³

SFDH2-587-02:
Unit Weight: 13.7 lbs (6.2 kg)
Selling Unit Size (L x W x H): 24.41" x 24.41" x 2.76" (62 x 62 x 7 cm)
Selling Unit Weight: 13.9 lbs (6.3 kg)
Master Carton Size (L x W x H): 25.20" x 25.20" x 6.69" (64 x 604 x 17 cm)
Master Carton Qty: 2 pcs
Master Carton Weight: 32.03 lbs (14.53 kg)
Master Carton Volume: 0.070 m³

Technical specifications

• Series / Model prefix: SFDH2 (SFDH2-485-02, SFDH2-545-02, SFDH2-587-02)
• Frame material: Aluminium Alloy
• Surface treatment: Anodized
• Glass material: Acrylic
• Handle material: Nylon
• Frame sizes available: ∅19" (485mm); ∅21.4" (545mm); ∅23.1" (587mm)
• Cut-out sizes available: ∅16.5" (420mm); ∅18.9" (480mm); ∅20.5" (522mm)
• Height (all listed): 1.8" (42.5mm)
• Deck thickness supported: 0.6" (15mm)
• Color: Black
• Unit weights and packaging dimensions as listed in Shipping Information above
