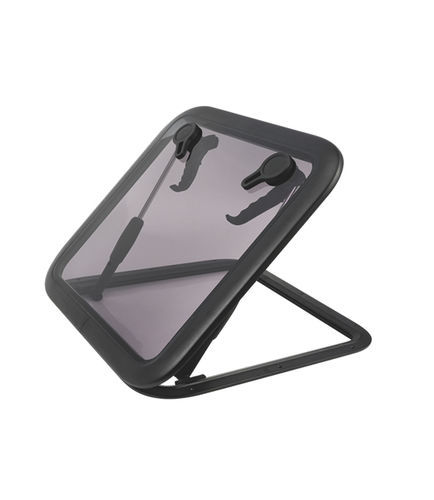

Boat deck hatch SFDH2-507-01

squareflushaluminum

Product Overview
Square deck hatch for marine and recreational boats. Available in SEAFLO 01 Series models (examples: SFDH2-507-01, SFDH2-572-01). Designed for deck mounting to provide light, ventilation and a flush finish.

More Features & Benefits

• Frame material: Aluminium alloy
• Surface treatment: Anodized
• Window material: Acrylic
• Handle material: Nylon

Standard Configurations (table)
Model | Frame Size | Cut-out Size | Height | Deck Thickness | Color
SFDH2-507-01 | 19.9" (507 mm) | 17.4" (442 mm) | 1.8" (42.5 mm) | 0.6" (15 mm) | Black
SFDH2-572-01 | 22.5" (572 mm) | 20" (507 mm) | 1.8" (42.5 mm) | 0.6" (15 mm) | Black

Dimensions
SFDH2-507-01: Frame 19.9" (507 mm) — Cut-out 17.4" (442 mm) — Height 1.8" (42.5 mm)
SFDH2-572-01: Frame 22.5" (572 mm) — Cut-out 20" (507 mm) — Height 1.8" (42.5 mm)

Shipping Information (table)
SFDH2-507-01
Unit weight: 13.8 lbs (6.24 kg)
Selling unit size (L x W x H): 21.46" x 21.46" x 2.76" (54.5 x 54.5 x 7 cm)
Selling unit weight: 13.9 lbs (6.34 kg)
Master carton size (L x W x H): 22.44" x 22.24" x 6.69" (57 x 56.5 x 17 cm)
Master carton qty: 2 pcs
Master carton weight: 32.23 lbs (14.62 kg)
Master carton volume: 0.055 m³

SFDH2-572-01
Unit weight: 16.4 lbs (7.46 kg)
Selling unit size (L x W x H): 23.63" x 23.63" x 2.76" (60 x 60 x 7 cm)
Selling unit weight: 16.7 lbs (7.56 kg)
Master carton size (L x W x H): 24.41" x 24.41" x 6.69" (62 x 56.2 x 17 cm)
Master carton qty: 2 pcs
Master carton weight: 38.32 lbs (17.38 kg)
Master carton volume: 0.065 m³

Technical specifications

• Product name: Square deck hatch - 01 Series
• Brand: SEAFLO
• Models: SFDH2-507-01; SFDH2-572-01
• Frame size: 19.9" (507 mm) / 22.5" (572 mm)
• Cut-out size: 17.4" (442 mm) / 20" (507 mm)
• Height: 1.8" (42.5 mm)
• Deck thickness: 0.6" (15 mm)
• Color: Black
• Frame material: Aluminium alloy (anodized)
• Window material: Acrylic
• Handle material: Nylon
• Unit weight: 13.8 lbs (6.24 kg) / 16.4 lbs (7.46 kg)
• Selling unit size & weight and master carton data: see shipping information

Applications & Installation
Suitable for installation on boat decks and suitable for leisure and small commercial vessels. Before installation, verify the selected model's frame and cut-out dimensions and ensure proper sealing to maintain watertight integrity. Follow standard marine sealing and fastening practices.
